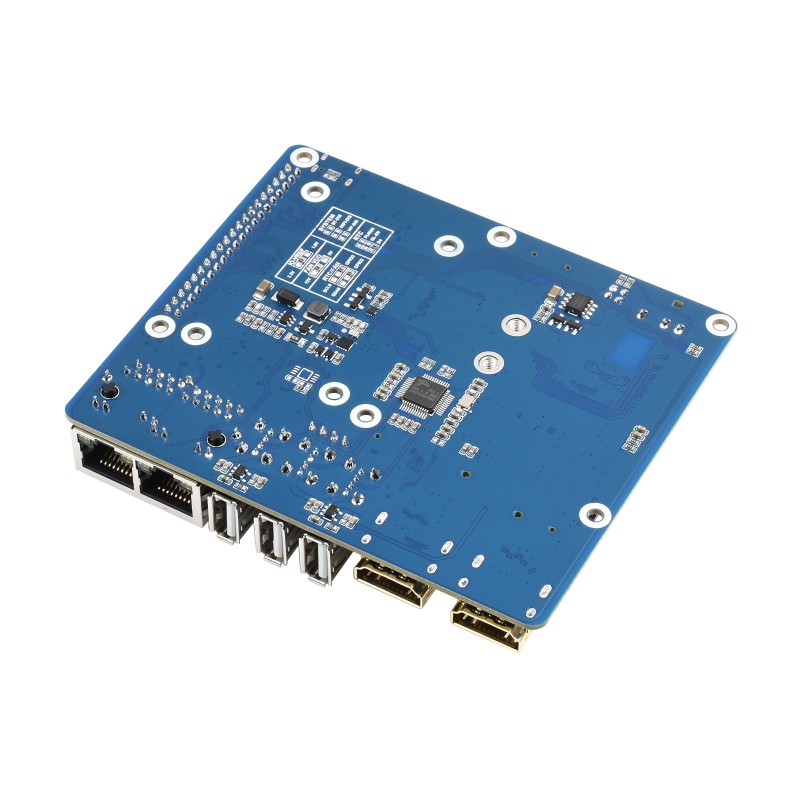

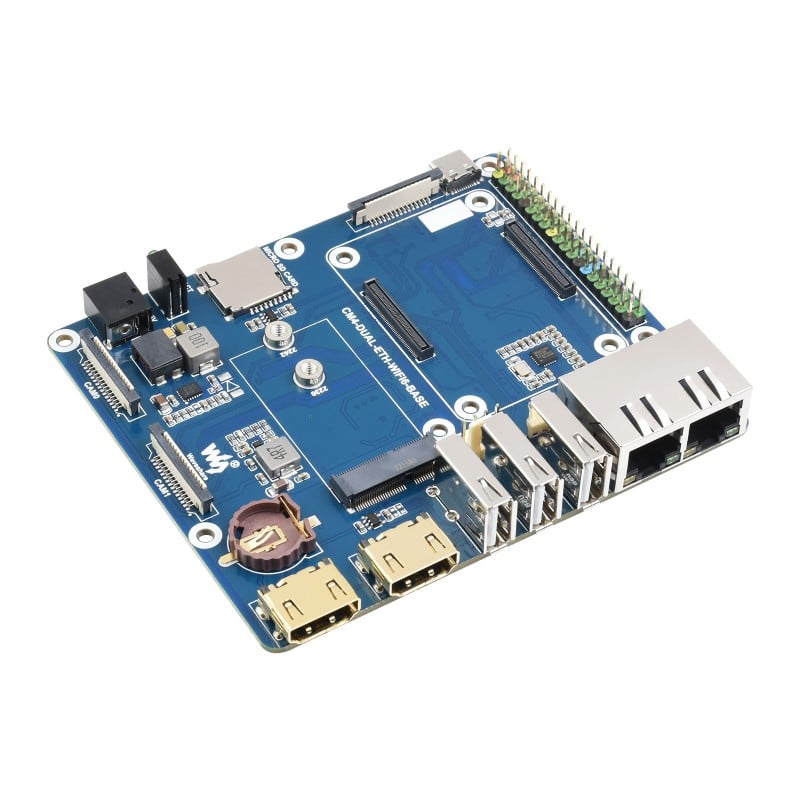

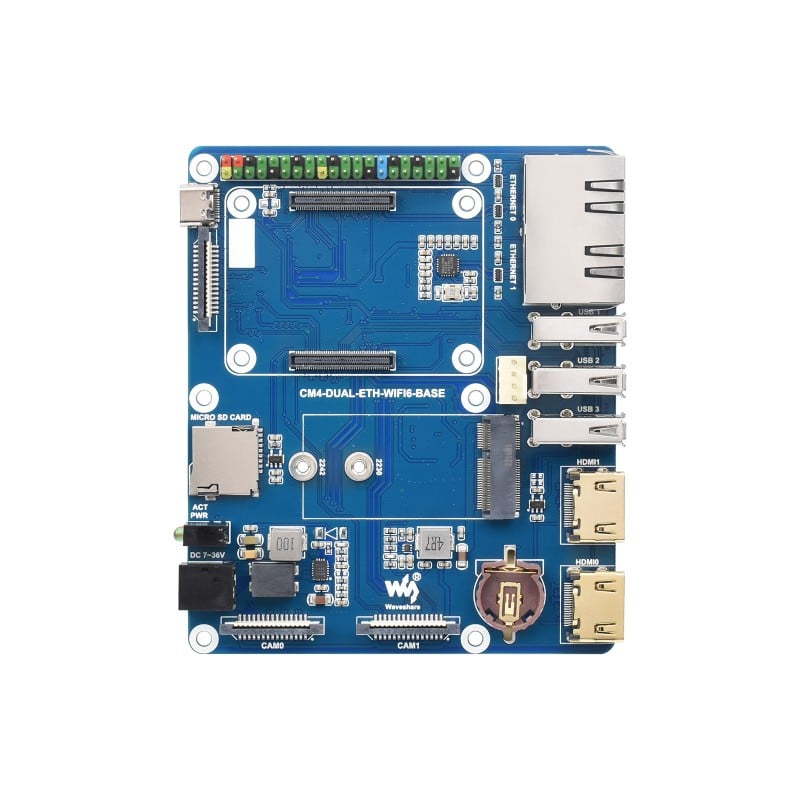

Waveshare WIFI6 Dual ETH Base Board/Mini-Computer Designed for Raspberry Pi Compute Module 4(NOT Included), Onboard M.2 E KEY Slot

CM4-DUAL-ETH-WIFI6-BASE, the IO board of the Raspberry Pi Compute Module 4, is a carrier board that can be used with the Raspberry Pi Compute Module 4 and supports 7~12V DC power supply, and the board has three USB ports 2.0, WIFI6, dual Ethernet ports, suitable for soft routing and other scenarios that require multiple Ethernet ports.

Features:

1. supports 7~12V DC power supply
2. Compatible With The Following Types Of WIFI Modules With M.2 A/E KEY Interface
3. Support Access To WIFI6 Module, Make It Easy To Build Raspberry Pi CM4 Mini PC With WIFI Function
4. Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header Suitable For Compute Module 4 Lite/EMMC Series Module

Specifications:

1. Power Input: 7V-36V
2. CM4 Socket: suitable for all variants of Compute Module 4
3. Networking: Gigabit Ethernet RJ45 connector × 1; 100M Ethernet RJ45 connector × 1
4. USB: USB 2.0 port × 3
5. PCIE: M.2 E KEY
6. PIN Header: 40PIN GPIO header × 1
7. DSI Display: MIPI DSI display port × 1, 15pin 1.0mm FPC connector
8. CSI Camera: MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector
9. HDMI: HDMI × 2, support 4K 30fps output
10. RTC: Real-time clock with a battery socket and ability to wake Compute Module 4
11. TF CARD SLOT: TF card socket for Compute Module 4 Lite (without eMMC) variants

Package Includes:

1 x Waveshare WIFI6 Dual ETH Base Board/Mini-Computer Designed for Raspberry Pi Compute Module 4(NOT Included), Onboard M.2 E KEY Slot
