Waveshare Industrial Grade SIM7600G-H 4G DTU, USB UART/RS232/RS485 Multi Interfaces Communication, LTE Global Band Support

This is an industrial grade 4G DTU which incorporates Qualcomm platform 4G communication module SIM7600E-H. It supports multi-mode multi-band, and suits multi countries or regions. After our secondary development for the module firmware, it takes only some simple configurations to achieve bidirectional data transparent transmission between RS232/RS485/TTL serial port and 4G LTE network.

With features like four modes support (TCP/UDP, Modbus, HTTP, and MQTT), RNDIS dial-up, and GNSS positioning, this industrial-grade DTU is designed to be fully functional, easy to use, and stable operating. It would be an ideal choice for fields including industrial data collection, communication, remote control, and other IoT applications that need high throughput 4G data communication and have high requirements of data rate and latency.

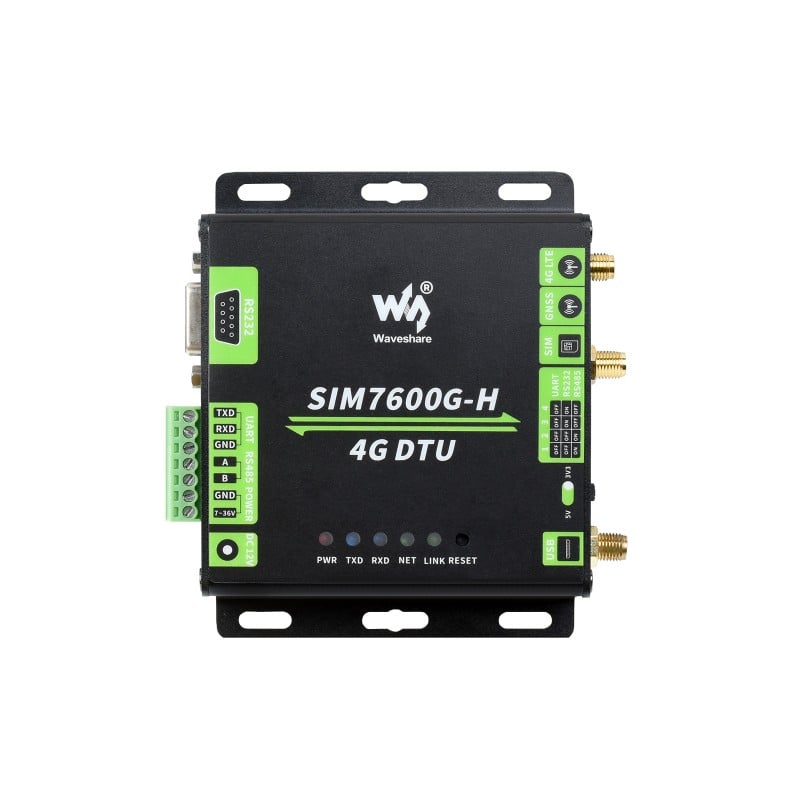

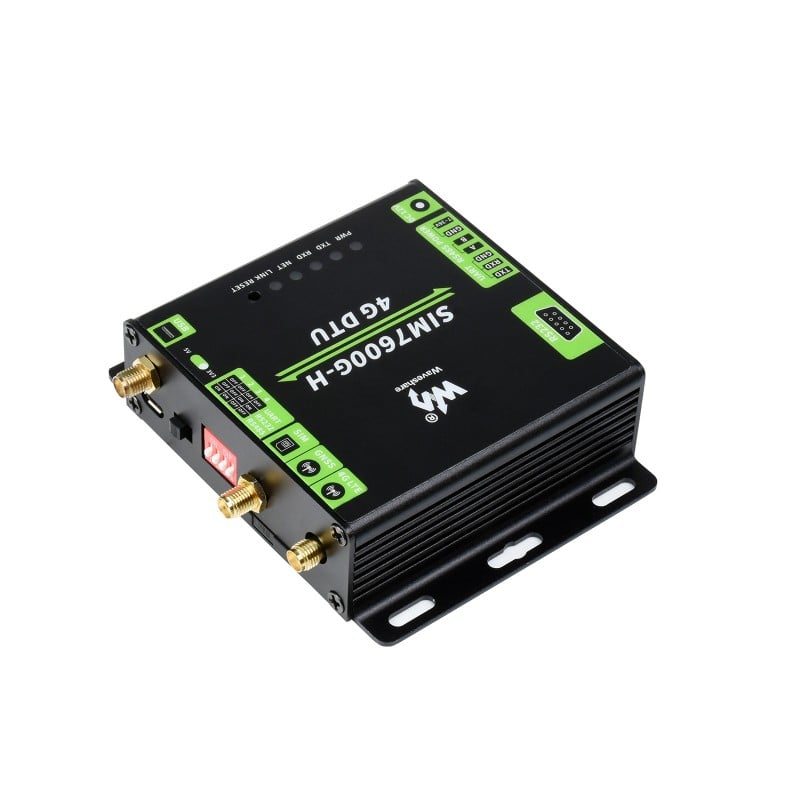

SIM7600G-H 4G DTU

Supports USB, UART/RS232/RS485 Communication
4G/3G/2G Dial-Up & GNSS Positioning, Global Band Support

Supports communication between USB / serial port (UART/RS232/RS485) and 4G network, supports GNSS positioning, compatible with OS like Windows/Linux.
An ideal choice for fields like Raspberry Pi project, industrial control, industrial data collection, and other IoT applications that require 4G network connection.

Cloud Communication

Supports USB/UART Communication Interfaces
Supports TCP/UDP/FTP/FTPS/HTTP/HTTPS Communication Protocols

Outline Dimensions

Features:

1. 4G DTU development kit specially designed for industrial applications, which can be directly embedded for use or secondary development
2. Based on SIM7600G-H communication module, it supports 4G/3G/2G networks in global frequency bands
3. Support GPS, Beidou, Glonass, GALILEO, QZSS, LBS base station positioning
4. Supports USB to 4G and UART/RS232/RS485 to 4G networking communication
5. Supports power supply in a wide voltage range of 7 ~ 36 V, which is convenient for power supply in industrial occasions
6. Onboard STM8 microcontroller, can be used as hardware watchdog, automatically power off and restart when DTU works abnormally
7. Various on-board protection circuits, anti-static, anti-surge, etc., the communication is stable and safe
8. Support baud rate range: 300bps ~ 4Mbps (default is 115200bps)
9. Support AT command control (based on 3GPP TS 27.007, 27.005 and V.25TER command set)

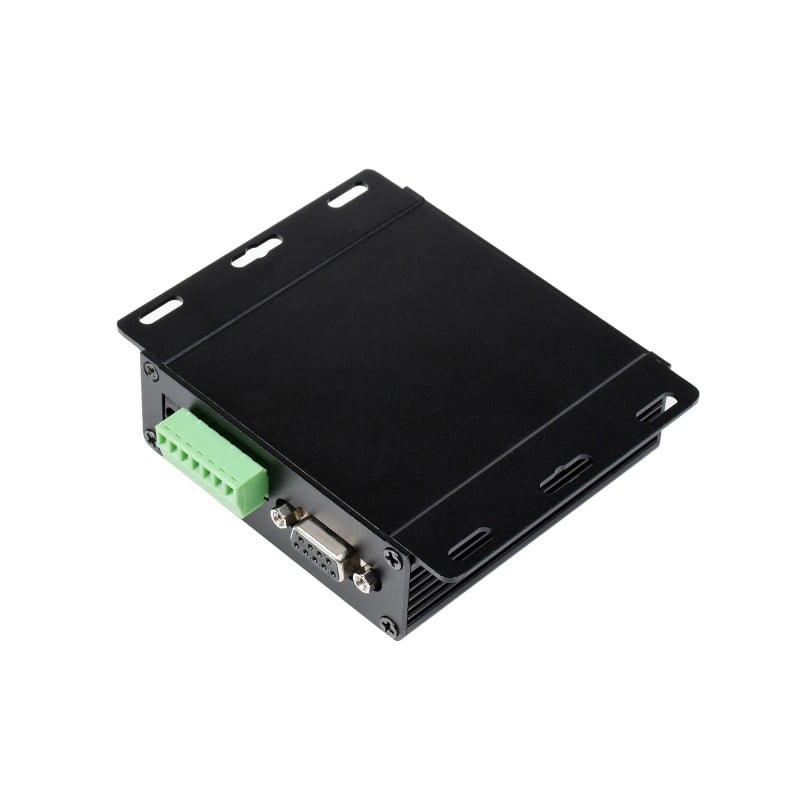

10. Aluminum case, oxidized dull polish surface, CNC numerical control opening processing, rugged & elegant

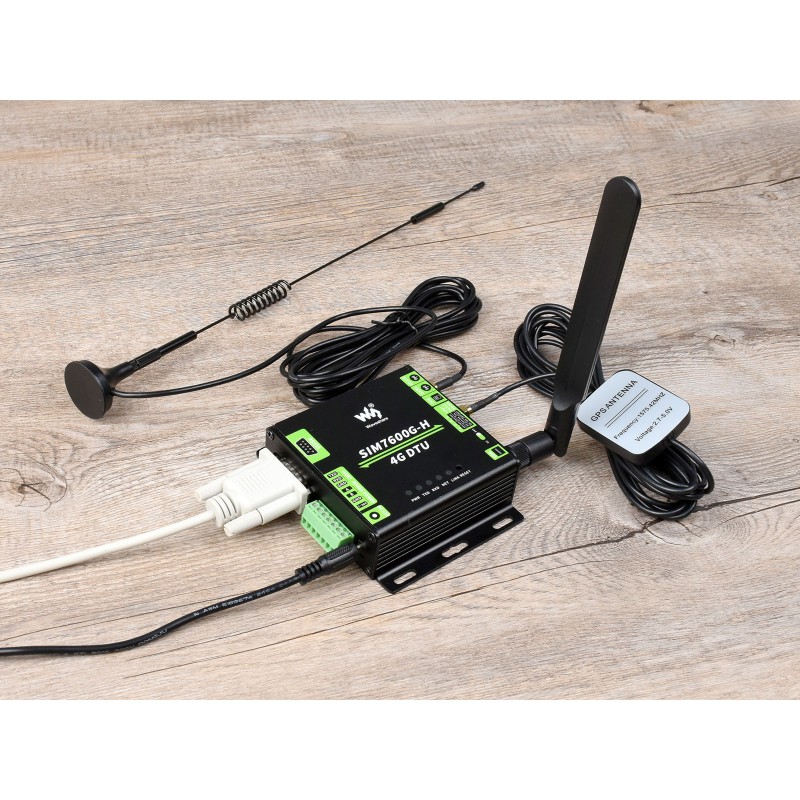

Package Includes:

1 x SIM7600G-H 4G DTU main unit
1 x High gain LTE MAIN antenna (~ 3m)
1 x High gain LTE AUX antenna
1 x GPS antenna
1 x Serial cable male to female (~ 1.5m)
1 x USB-A to micro-B cable (~ 1.2m)
1 x OPTIONS 12V 1.0A power adapter
