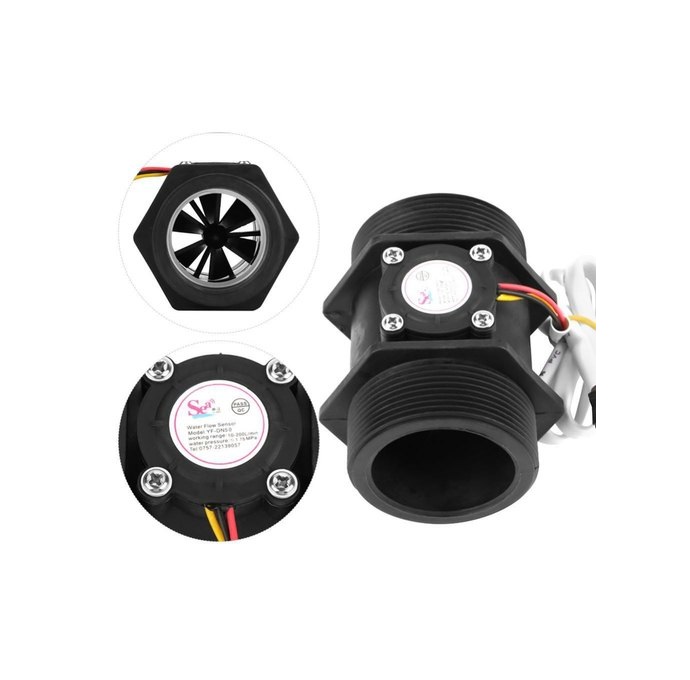

Water Flow Sensor (Sea) YFDN50 Flowmeter G2 10- 200L/min 3.5-12V

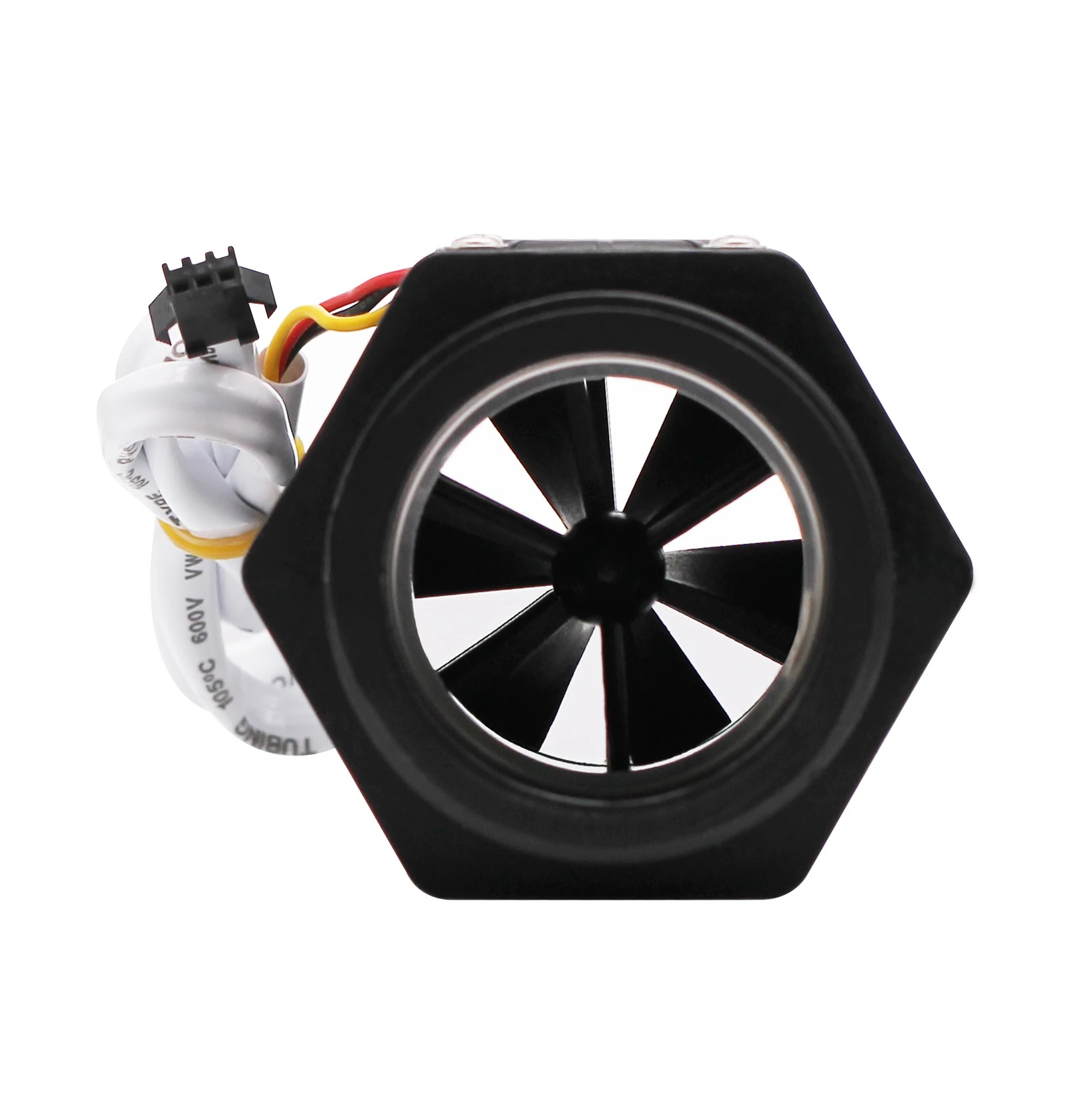

YFDN-50 Water Flow Sensor is Waterproof, Heat resistance, pressure resistance, cold resistance through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal.  With stainless steel axis in the wheel, abrasion-resistant; Sealing ring design to prevent water leaks; Compliant with RoHS standard Mainly used for water heater, water machine, card machine, various types of filling equipment and water control device.
Installation direction: Vertical (inclination should not exceed 5 degrees.

Note: Product image may vary from the actual product.

Features:

1. Flow range:10-200L/min
2. Allow compression: Water pressure 1.75 Mpa below
3. Working voltage range:DC 3.5-12 V
4. Output Waveform: Square Wave, output pulse signal.
5. Sensor: Hall effect

Specification:

1. Waterproof,Heat resistance,pressure resistance,cold resistance.
2. Easy to install.
3. Flow range:10-200L/min
4. Sensor:Hall effect
5. Maximum current:15 mA(DC 5V)
6. Working voltage range:DC 3.5-12 V
7. Load capacity:¡Ü10 mA(DC 5V)
8. Operating Temp:up to 80C,Operating humidity:35%-90%RH
9. Allow compression:Water pressure 1.75 Mpa below
10. Insulation resistance:>100M OHM
11. Storage Temperature:-25-80C
12. Storage humidity:25%-95%RH
13. Output Waveform:Square Wave,output pulse signal.
14. Cable length:480mm
15. Max Size:92mm*68mm

Package Includes:

1 x YFDN50 Flowmeter
