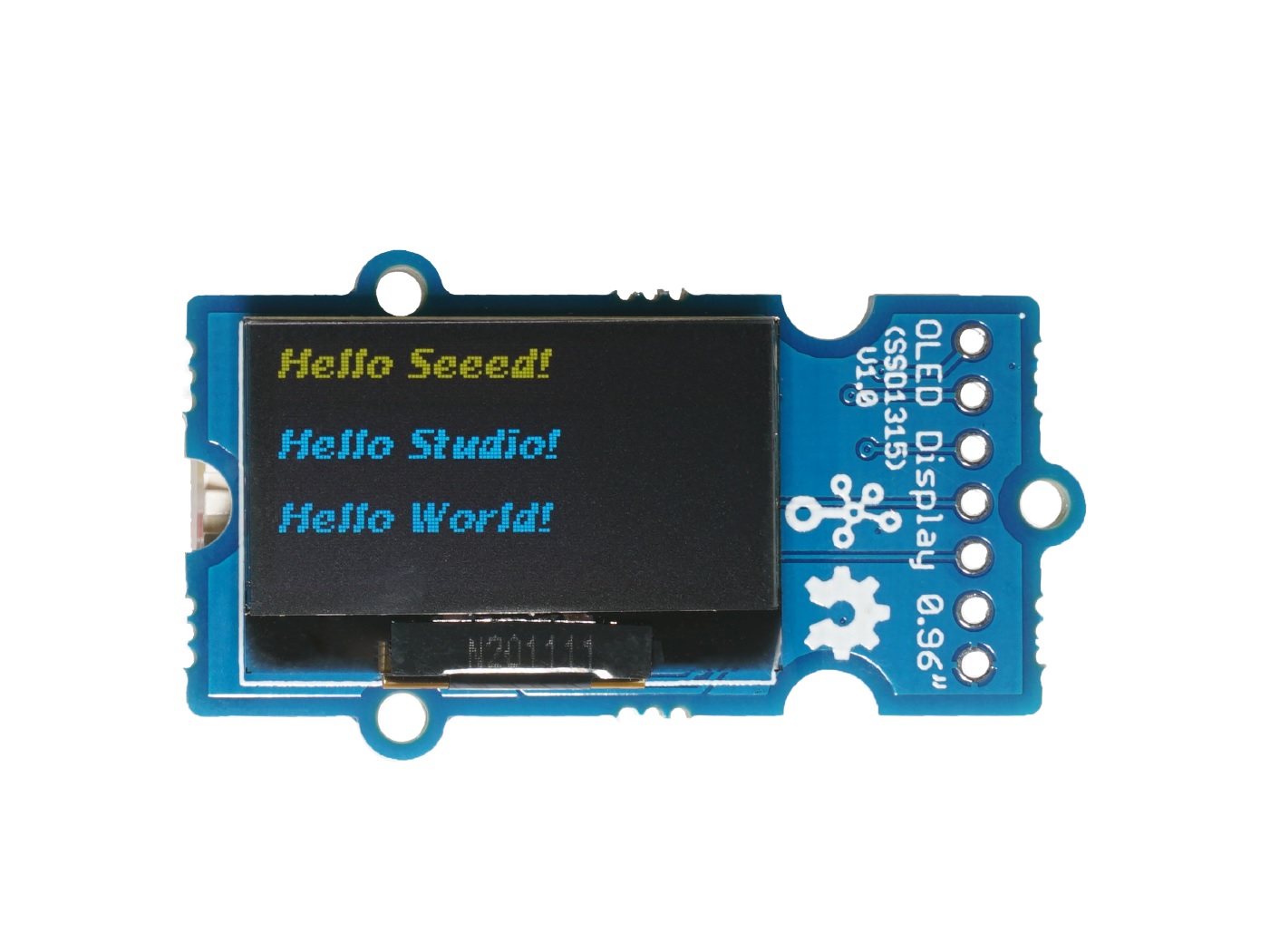

SeeedStudio Grove OLED Yellow&Blue Display 0.96 (SSD1315)_V1.0

The Grove – OLED Yellow&Blue Display 0.96 (SSD1315) is a blue and yellow two-colour display with 128*64 resolution. Compared with LCDs, there are many advantages on OLED(Organic Light Emitting Diode) like self-emission, high contrast ratio, slim/thin outline, wide viewing angle and low power consumption. The display works on both 3.3V and 5V supply voltage. You can use either I2C or SPI interface to light up the display with your microcontroller to display words, images, and whatever you want.

Features:

1. 3.3V/5V power supply compatible

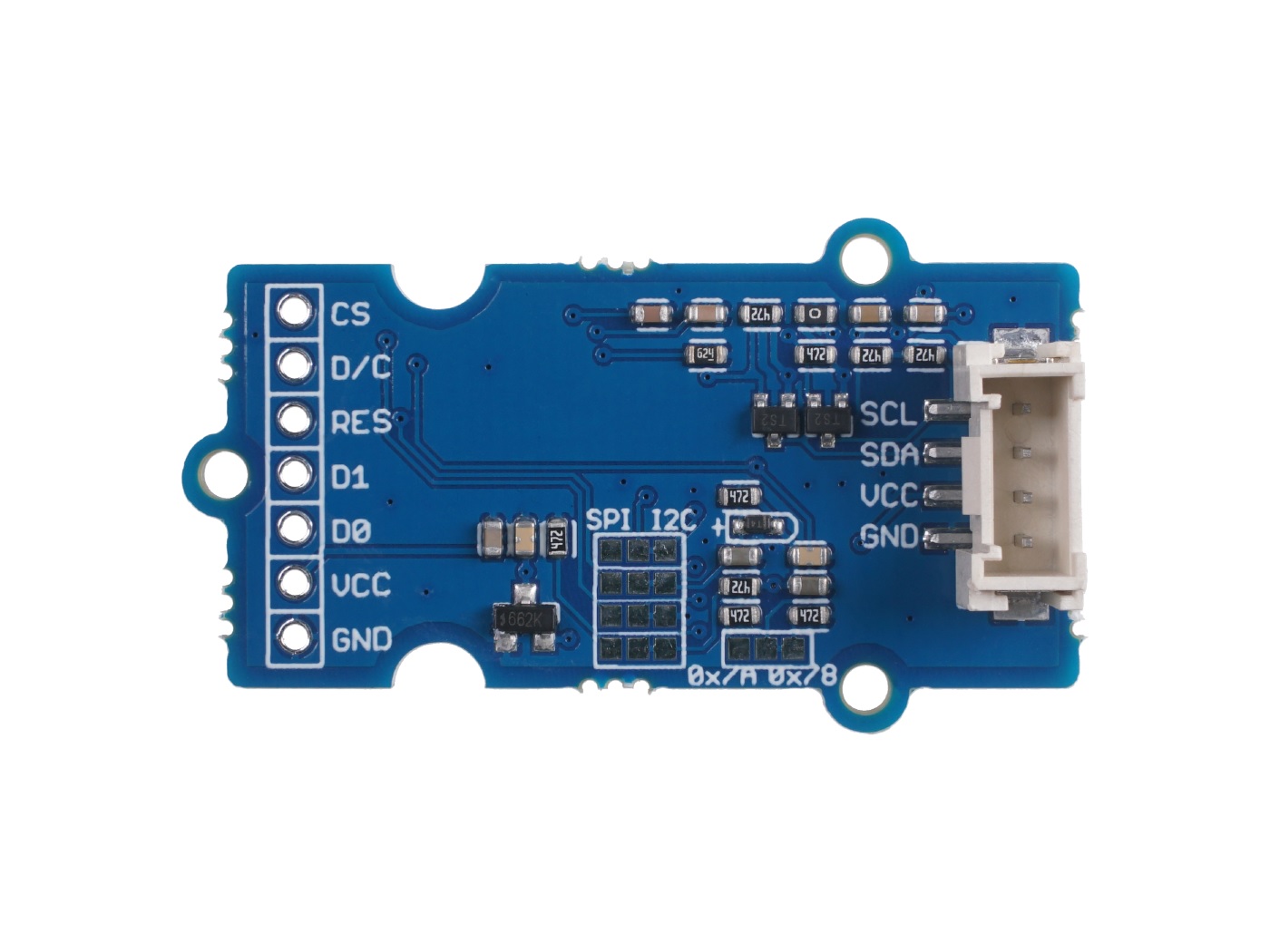

2. Changeable I2C address
3. SPI available
4. Low power consumption
5. Yellow and Blue two-colour 128×64 pixels
6. High contrast, high brightness
7. Wide operating temperature range: -40℃ ~ +85 ℃

Specification:

1. Input voltage 3.3V / 5V
2. Output Voltage 0 ~ 2.3V
3. Pixels 128 x 64
4. Temperature Range -40℃ ~ +85 ℃
5. Interface I2C/SPI

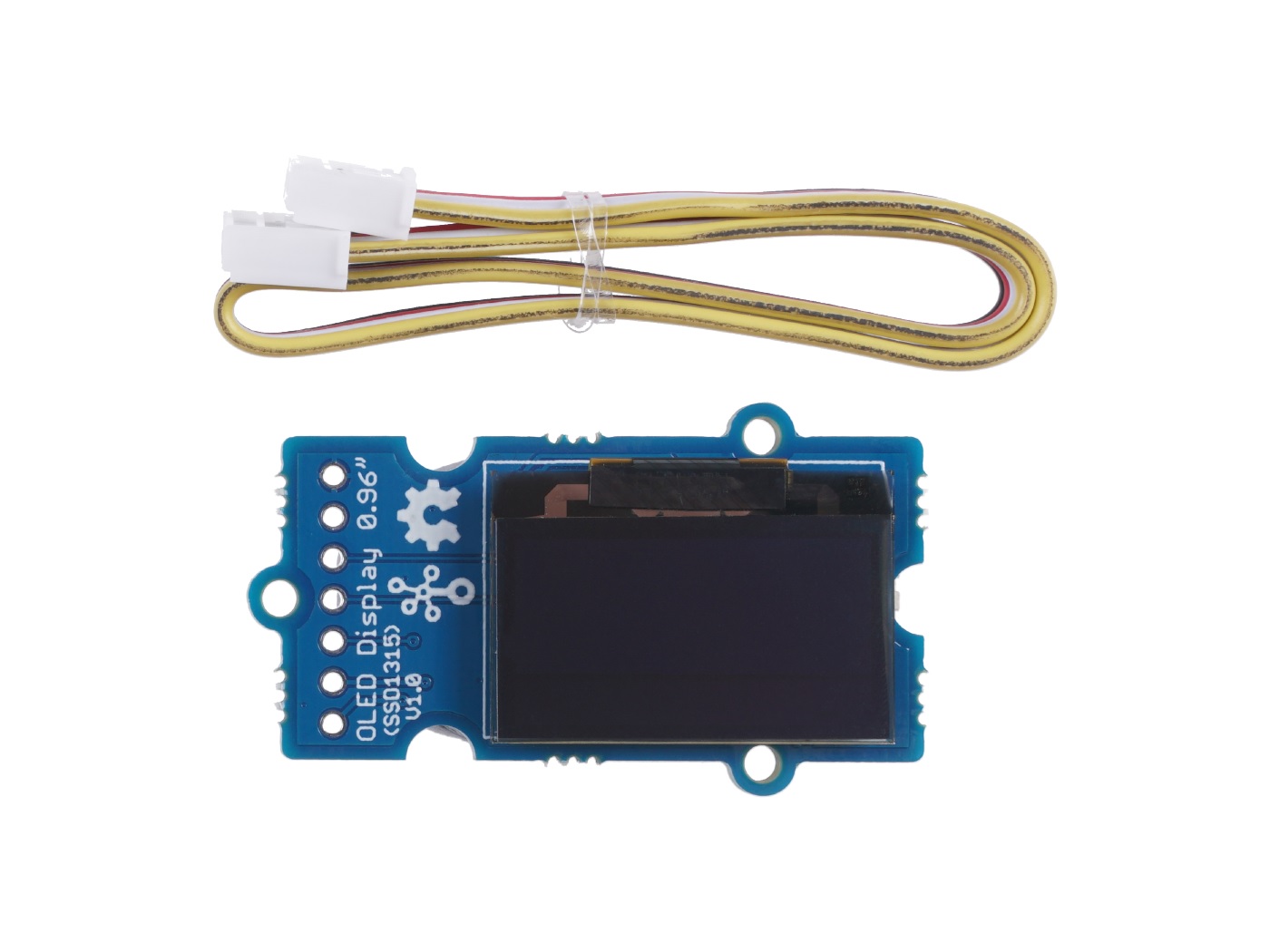

Package Includes :

1 x SeeedStudio Grove OLED Yellow&Blue Display
1 x JST Cable
