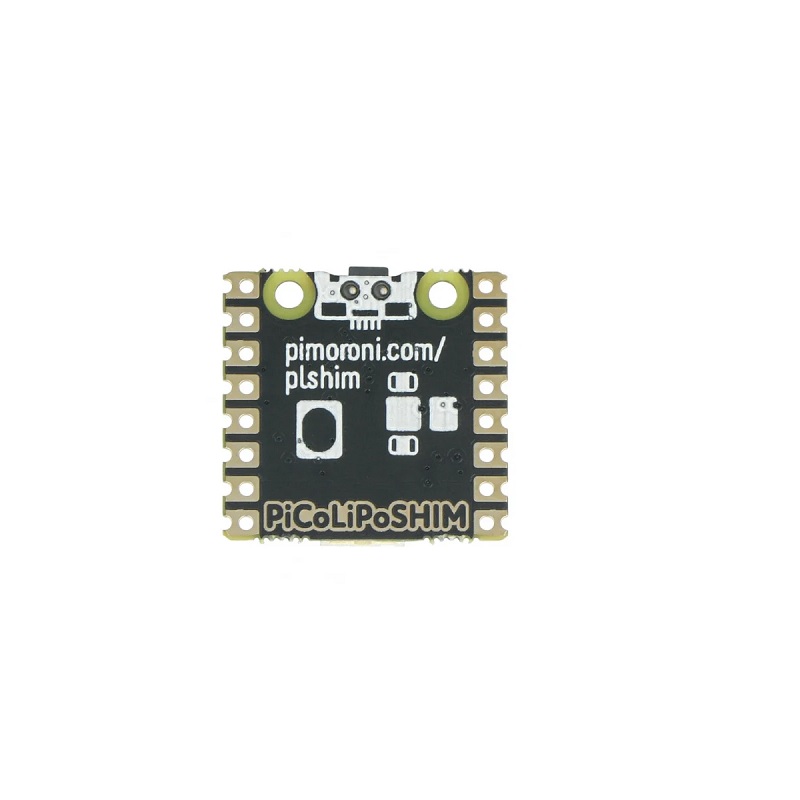

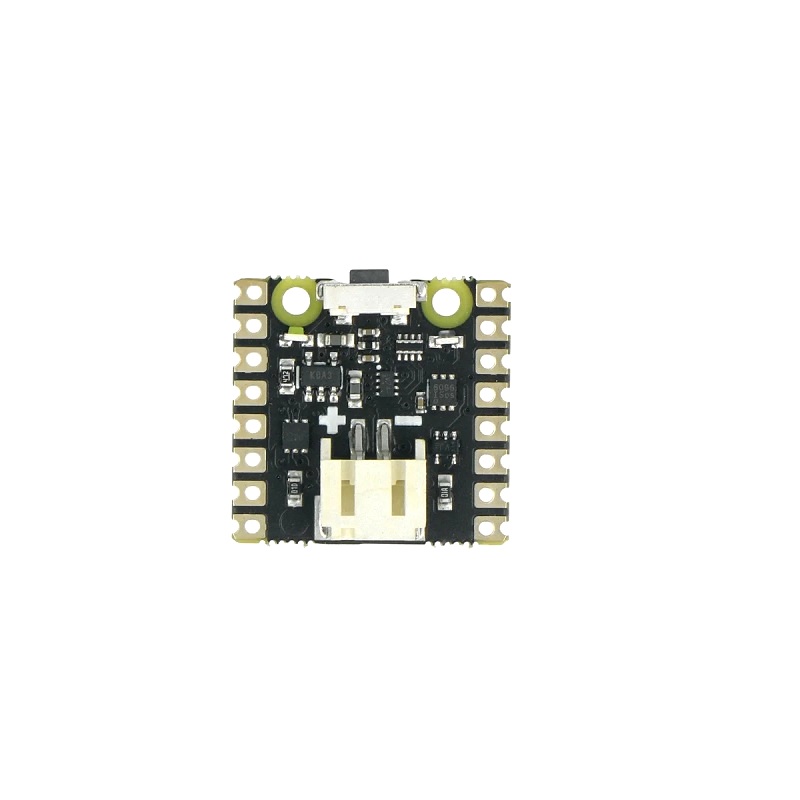

PIMORONI LiPo/LiIon SHIM for Raspberry Pi Pico

The inbuilt charging circuit means it can recharge the attached battery by supplying power to the Pico via USB, and it includes protection against over-discharge and overcurrent. There’s a power button to stop the SHIM from providing battery power when it’s not needed and turn any project on and off, as well as two LED indicators – a white one that shows when the shim is providing power and a red one to tell that when the battery is being charged.

Features:

1. Protection of Charger Reverse Connection
2. Protection of Battery Cell Reverse Connection
3. Only One External Capacitor Required
4. Over-temperature Protection
5. Overcharge Current Protection
6. Two-step Overcurrent Detection

Package includes:

1 x PIMORONI LiPo/LiIon Power Supply SHIM for Raspberry Pi Pico
