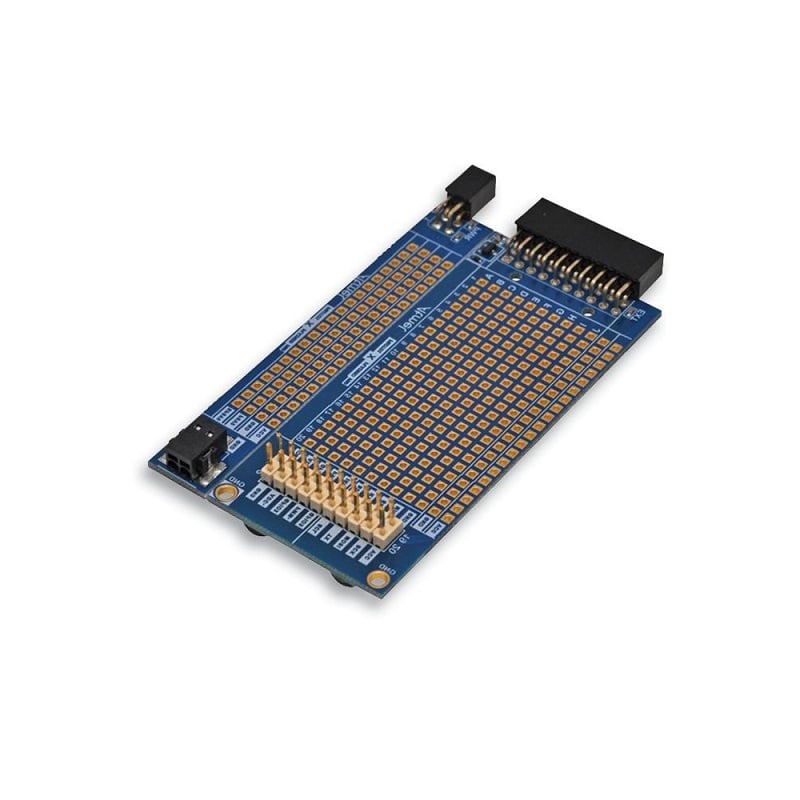

MICROCHIP Expansion Board, PROTO1 Xplained Pro, Connects to Expansion Headers on Xplained Pro MCU Board

ATPROTO1-XPRO Xplained Pro provides easy prototyping on the Xplained Pro platform. It connects to the extension headers of any Xplained Pro board and can be used as a gateway to other Xplained Pro extension boards with its own Xplained Pro extension header. Compatible with the Xplained Pro extension headers Auto-ID for board identification in Atmel Studio 6.1 1 prototype board with 10 x 20, 100mil pitch prototype area1 power interface board for external power supply.

Features:

1. Square prototype pads to allow easy SMD prototyping
2. V-cut allows splitting the prototype and power interface board
3. 1 Xplained Pro header to allow connecting other Xplained Pro extension boards
4. Supported with application examples in Atmel Software Framework

Package Includes:

1 x MICROCHIP Expansion Board, PROTO1 Xplained Pro, Connects to Expansion Headers on Xplained Pro MCU Board
