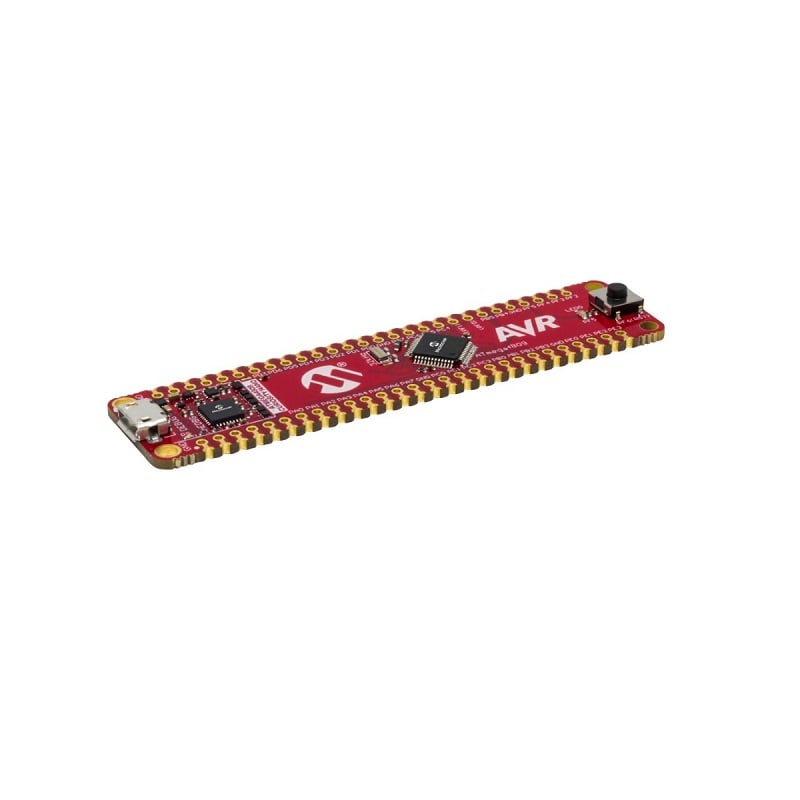

MICROCHIP  DM164151  Evaluation Kit, Curiosity Nano, AVR128D MCU, 8-Bit

AVR128DA48 Curiosity Nano evaluation kit is a hardware platform to evaluate microcontrollers in the AVR-DA family. This board has the AVR128DA48 microcontroller (MCU) mounted. Supported by Atmel Studio and Microchip MPLAB® X Integrated Development Environments (IDEs), the board provides easy access to the features of the AVR128DA48 to explore how to integrate the device into a custom design. The Curiosity Nano series of evaluation boards include an on-board debugger. No external tools are necessary to program and debug the AVR128DA48. One yellow user LED, one mechanical user switch .One 32.768KHz crystal Board identification in Atmel Studio/Microchip MPLAB® X IDE .One green power and status LED. 500mA maximum output current (limited by ambient temperature and output voltage)

Attention: For additional technical specifications, please refer to the accompanying datasheet in the attachment section.

Features:

1. One yellow user LED, one mechanical user switch
2. One 32.768KHz crystal
3. Board identification in Atmel Studio/Microchip MPLAB® X IDE
4. One green power and status LED
5. 500mA maximum output current (limited by ambient temperature and output voltage)
6. Virtual serial port (CDC), two debug GPIO channels (DGI GPIO)
7. USB powered
8. MIC5353 LDO regulator controlled by the on-board debugger
9. 1.8V to 5.1V output voltage (limited by USB input voltage)

Package Includes:

1 x MICROCHIP  DM164151  Evaluation Kit, Curiosity Nano, AVR128D MCU, 8-Bit
