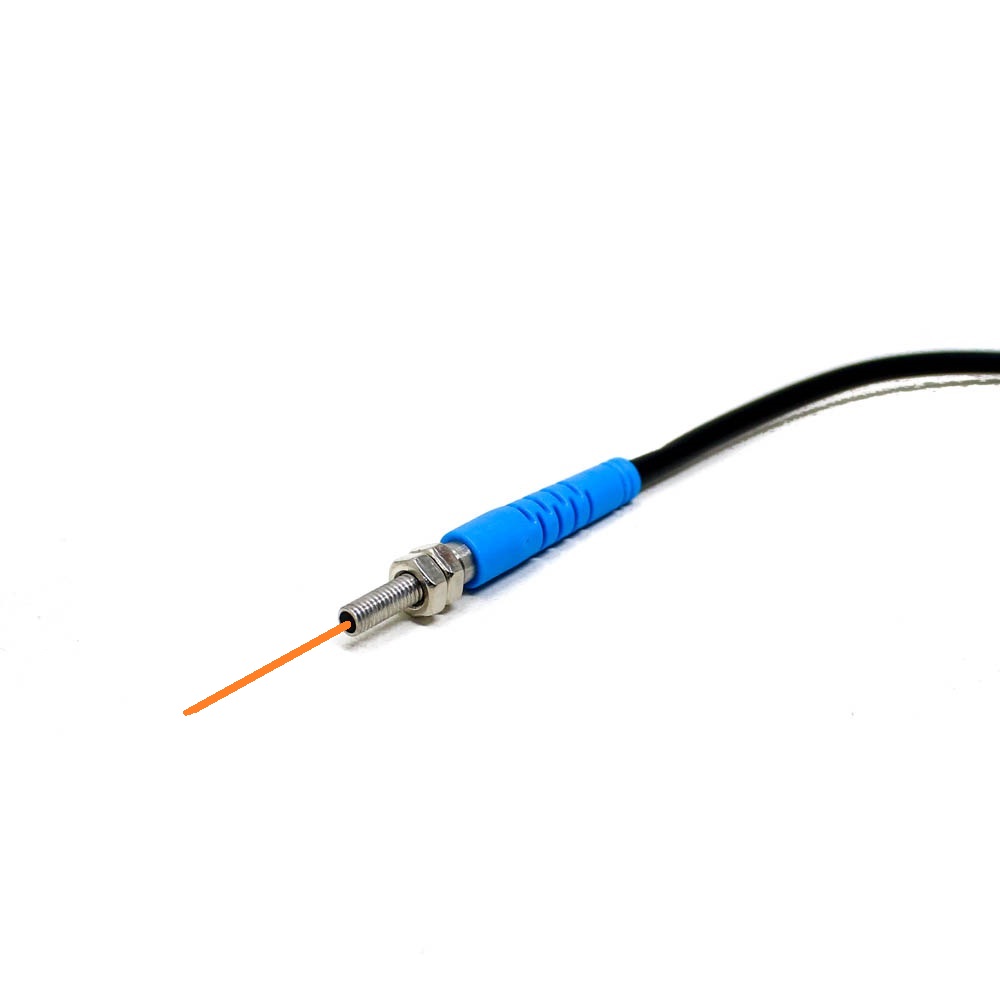

M3 FTD-03NO 30MM Laser Micro, Diffuse Reflectance Photoelectric, Switch, Laser Invisible Light

This is an M3 FTD-03NO 30MM Laser Micro Diffuse Reflectance Photoelectric Switch Laser Visible Light. The photoelectric switch uses the object to block or reflect the beam and detects the presence or absence of the object through the synchronous loop gate circuit. All objects can reflect light and can be detected. A new generation of optical switching equipment with delay, expansion, external synchronization, anti-interference, high reliability, dedicated to self-diagnosis of regional stability and intelligent features.

Features:

1. Automatically locked in the daytime to save energy.
2. Strong anti-jamming capability.
3. Simple installation, convenient and safe.
4. Standby power is small, long service life, and can effectively prolong the service life of the load.

Specifications:

1. Model:M3 FTD-03NO
2. Operating Voltage:10 ~30 V
3. No-load current:9 mA
4. Output Current:150 mA
5. Operating Frequency:120 Hz
6. Diameter: M4
7. Detect Distance:30 mm
8. Fitting Material: Stainless Steel pipe
9. Operating temperature range: -0 to 50 Degree Celcius

Package Includes:

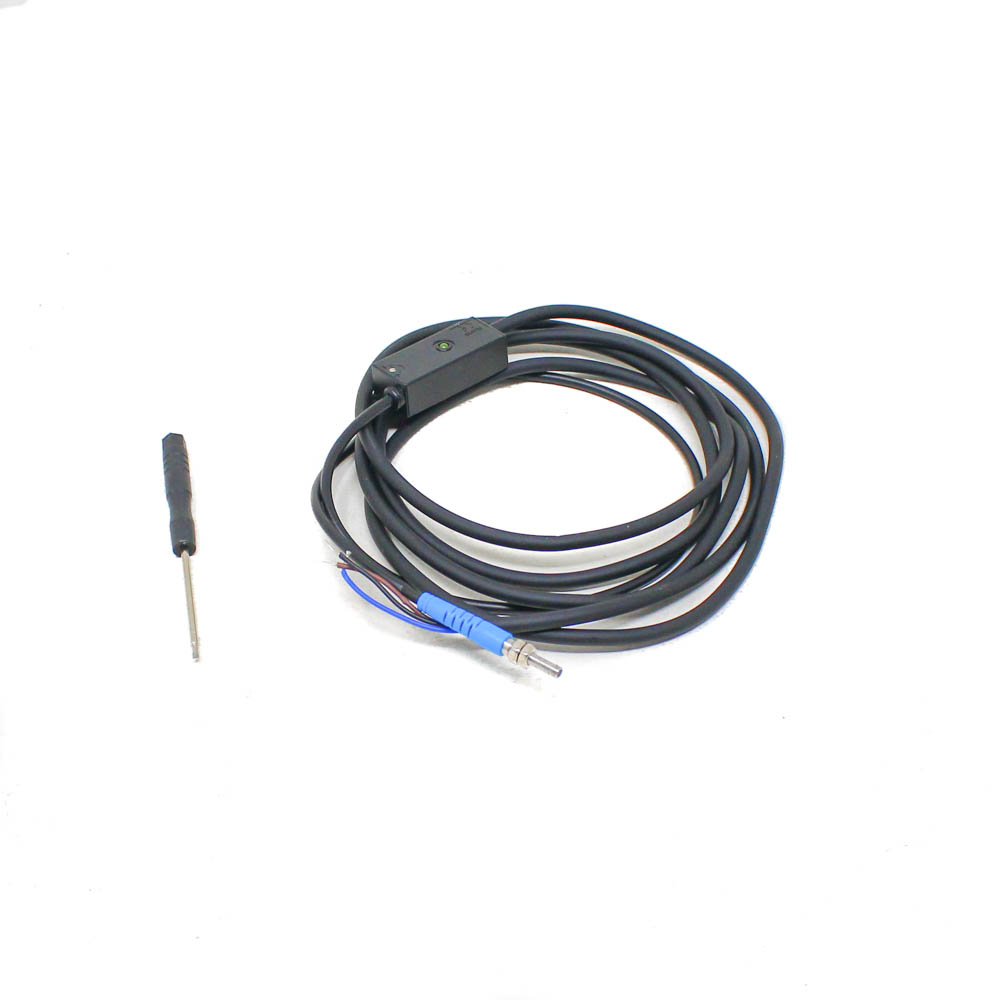

1 x M3 FTD-03NO 30MM Laser Micro Diffuse Reflectance Photoelectric Switch Laser Visible Light

1 x Screw Driver
