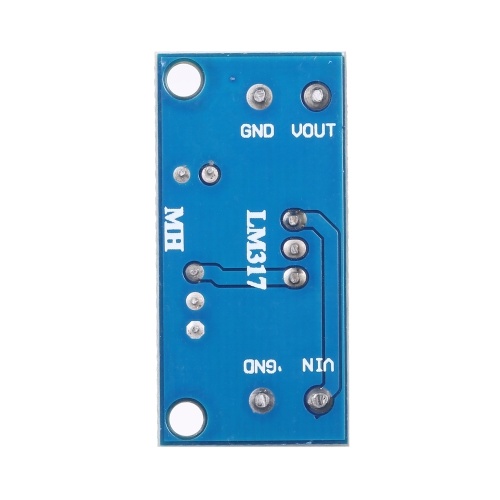

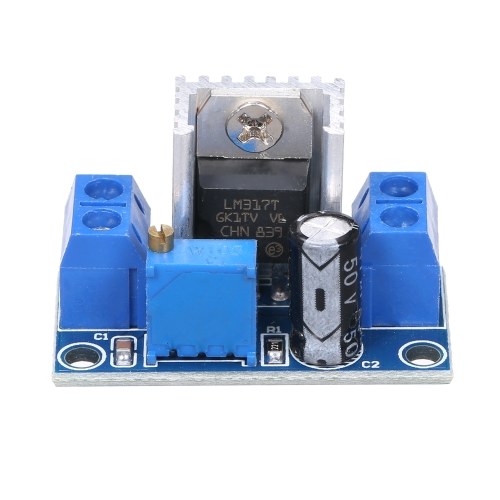

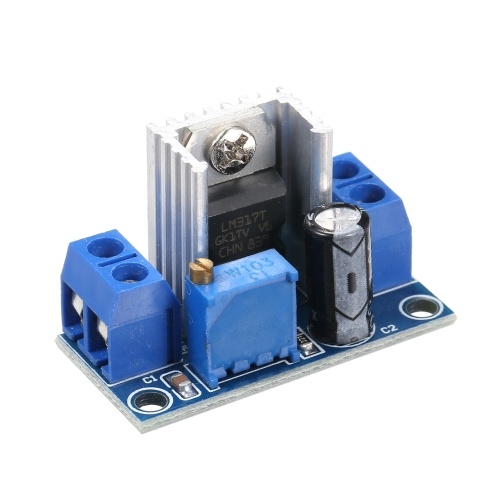

LM317 DC Linear Regulator, DC-DC 4.5~40V Turn 1.2~37V, Step Down Power Module, Adjustable

The LM317 DC-DC converter is an electronic circuit for converting a DC source voltage from one level to a lower level. This module is important in some portable electronic devices such as cell phones and laptops, which are primarily supplied by power from batteries. The step-down voltage can be easily adjusted and is, therefore, more efficient than using multiple batteries to achieve the same thing.

Features and Specification:

1. Output Current: 1.5A (Min.), 2.2A (Typical)
2. Input-Output Voltage Differential (VI-VO): 40Vdc (Max.)
3. Voltage Input: 4.2~40V
4. Adjustable Output Voltage Range: 1.2~37V
5. Operating Temperature: 0~125 ℃
6. Current Output: 1.5A
7. Characteristic Frequency: 100MHz
8. Input Method: VIN Input Positive Level, GND Input Negative
9. Output Method: VOUT Output Positive Level, GND Output Negative

Package Includes :

1 x  LM317 DC Linear Regulator
