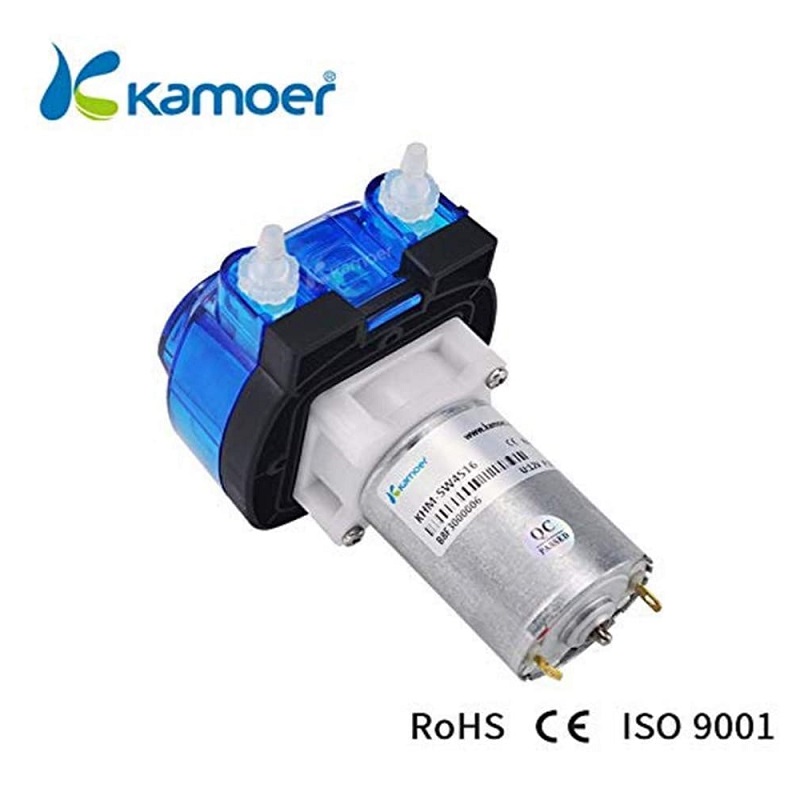

KHM-SV3S16 Kamoer Pump 24V BRUSHED(SV) 0.4A -S16 -360ml/min|Silicon tube 3.2*6.4

When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution. Unlike most pumps, peristaltic pumps squishes a silicone tube to produce the pump action instead of impelling it directly, thus no direct contact with the liquid. This pump requires a 24V DC supply and can produce a flow rate of up to 360ml per minute. If speed control is required we suggest using a simple PWM signal.

Features:

1. High flow
2. High negative pressure
3. Easy to maintenance
4. Chemical stability
5. Long life
6. High repeatability
7.  4 kinds of motors are available: 24V DC brush motor and brushless motor

8. Flow rate range: 24V340~580ml/min

9. Working conditions: temperature 0~40℃, humidity <80%

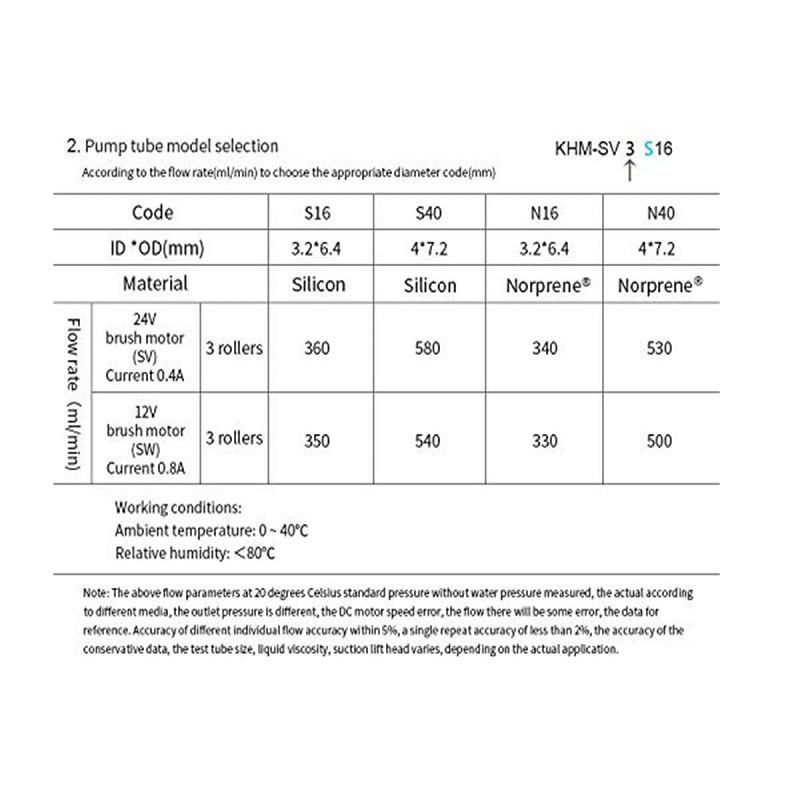

10. Pump tube selection: silicone tube, imported Norprene® tube

11. Transmission mode: planetary gear transmission, reduction ratio 1:8

12. Pump head: the upper cover is made of engineering plastics, the pump body

13. PA and gears are made of synthetic engineering plastics

14. Installation method: Straight plate and L plate

Specification:

1. Motor: DC motor
2. Voltage: 24V
3. Flow: 24V 340-580 ml/min
4. Tube: Norprene tube/Silicone tube
5. Rotor: 3 rotors
6. Pump head: Engineering plastics
7. Pump body: PA
8. Installation method: Through plate fixation and L plate installation
9. Temperature: 0~40℃
10. Humidity: Less than 80%

Application:

1. Experiment
2. Filling packaging
3. Laboratory
4. Research institutes
5. Food industry

Package Includes:

1 x KHL-SZS35 Kamoer Pump 24V Stepper Motor(sz) 1.8A-1800ml(350RPM)
