Flame IR Sensor Module

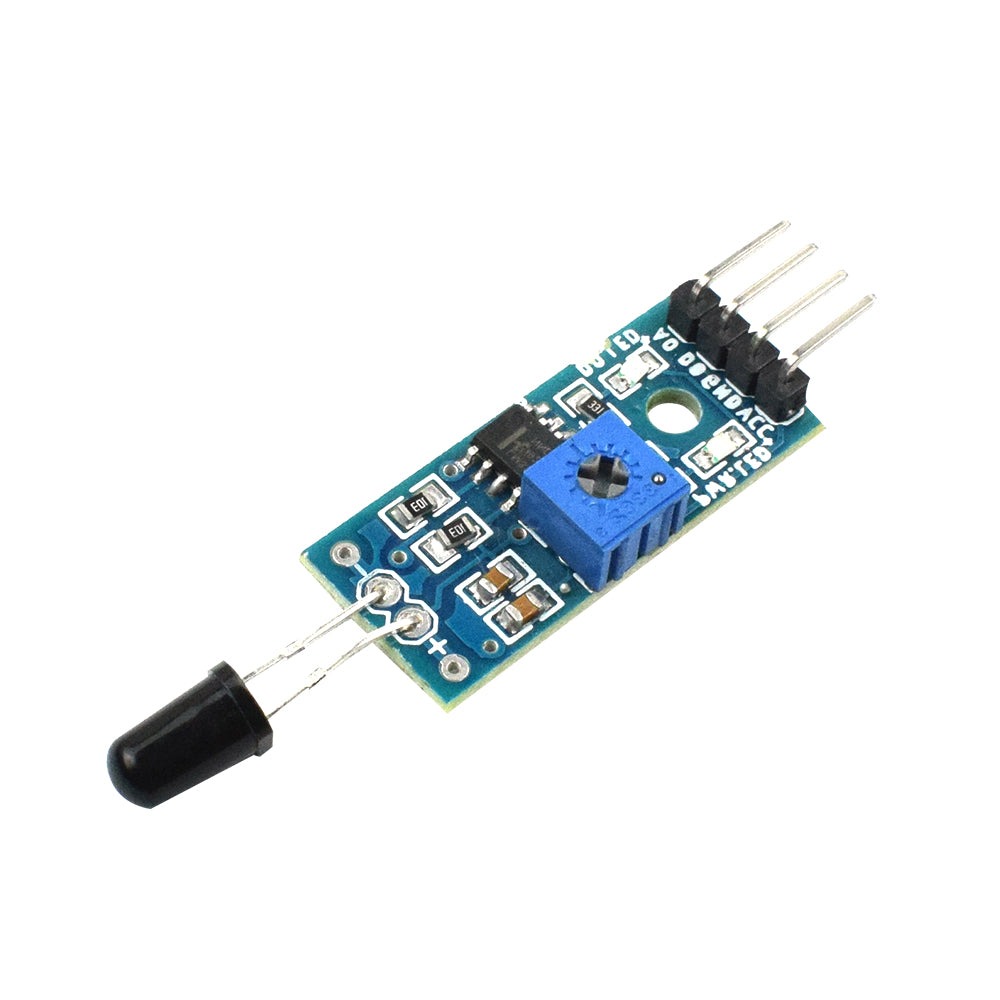

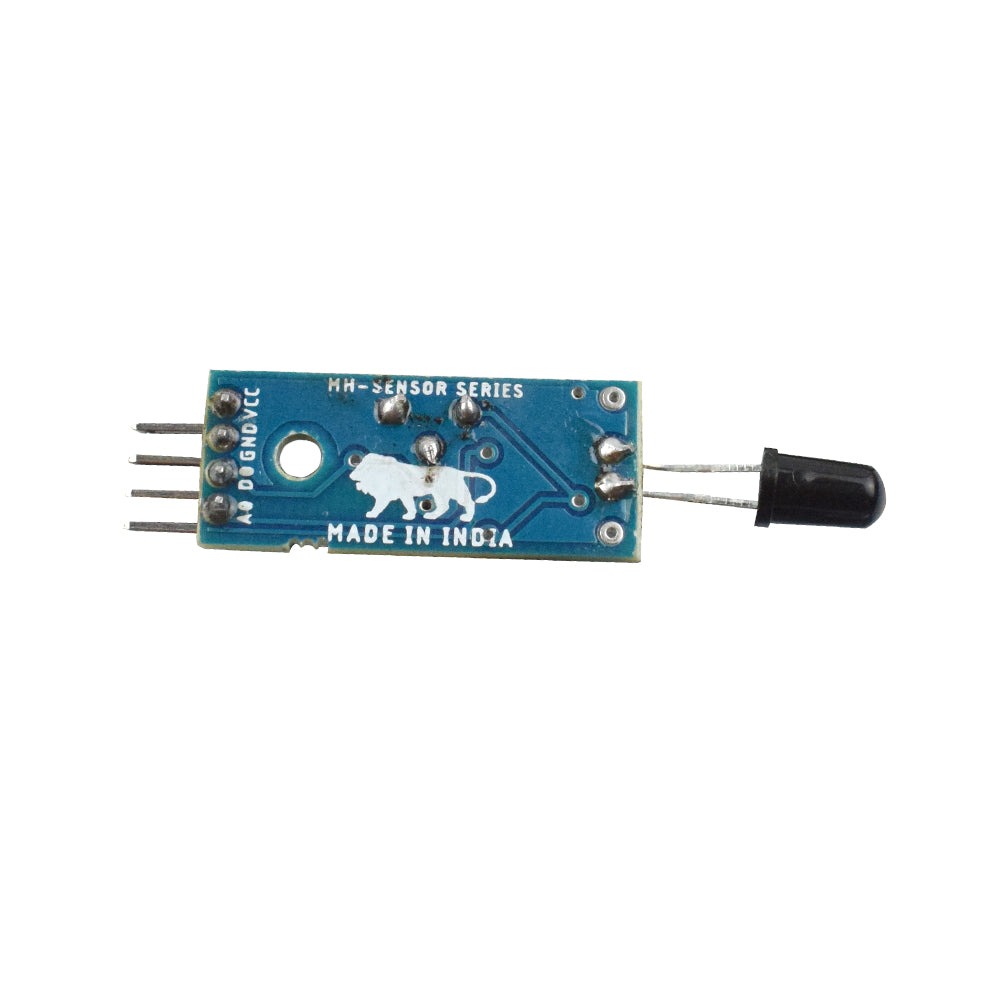

This is tiny flame sensor infrared sensor module ignition source detection module is Arduino compatible can use to detect flame or wavelength of the light source within 760nm~1100nm also useful for lighter flame detect at the distance of 80 cm. Greater  the flame, farther the test distance. It has the Detect angle of 60 and very sensitive to flame spectrum. It produces the one channel output signal at the D0 terminal for further processing like an alarm system or any switching system. The sensitivity is adjustable with the help of blue potentiometer given on the board. Onboard signal output indication, output effective signal is high, at the same time the indicator light up, the output signal can directly connected to microcontroller IO. This product is made in India.

Features :

• Indicator light: a green one for the switch, a red one for power.
• Onboard signal output indication, output effective signal is high, at the same time the indicator light up, the output signal can directly connect to microcontroller IO.
• Built in a potentiometer for sensitivity control.
• Can detect fire or wavelength in 760 ~ 1100 nm Nano within the scope of the light source.
• Detection angle is about 60 degrees, the flame spectrum especially sensitive.
• The flame of the most sensitive sensors flame, the regular light is also a response, generally used for fire alarm purposes.

Specification :
