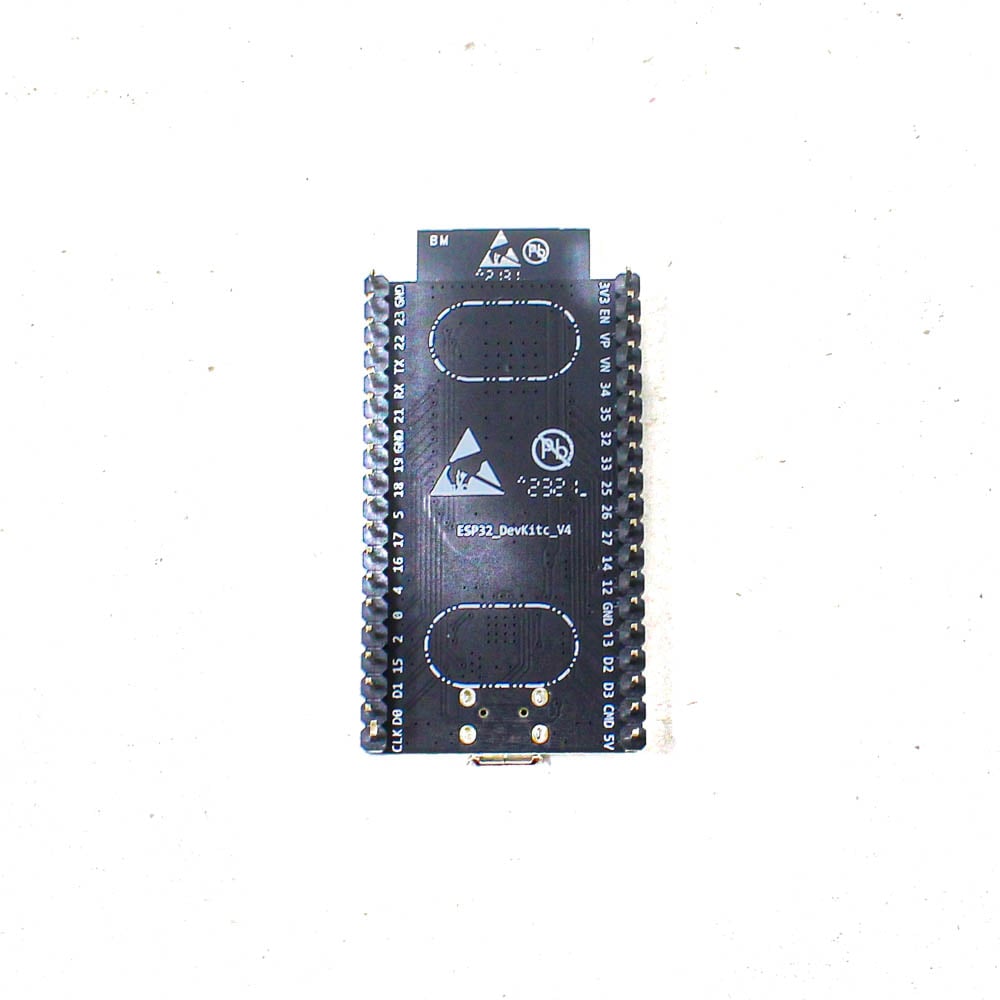

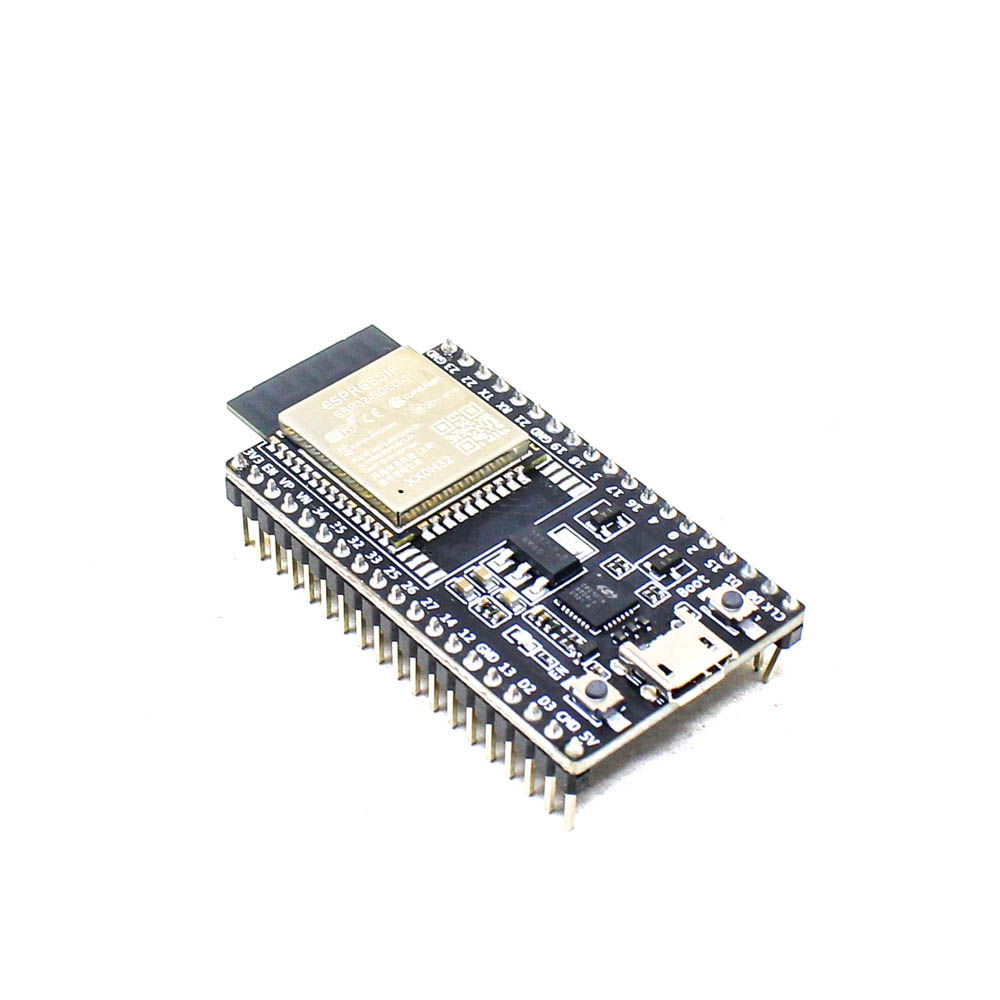

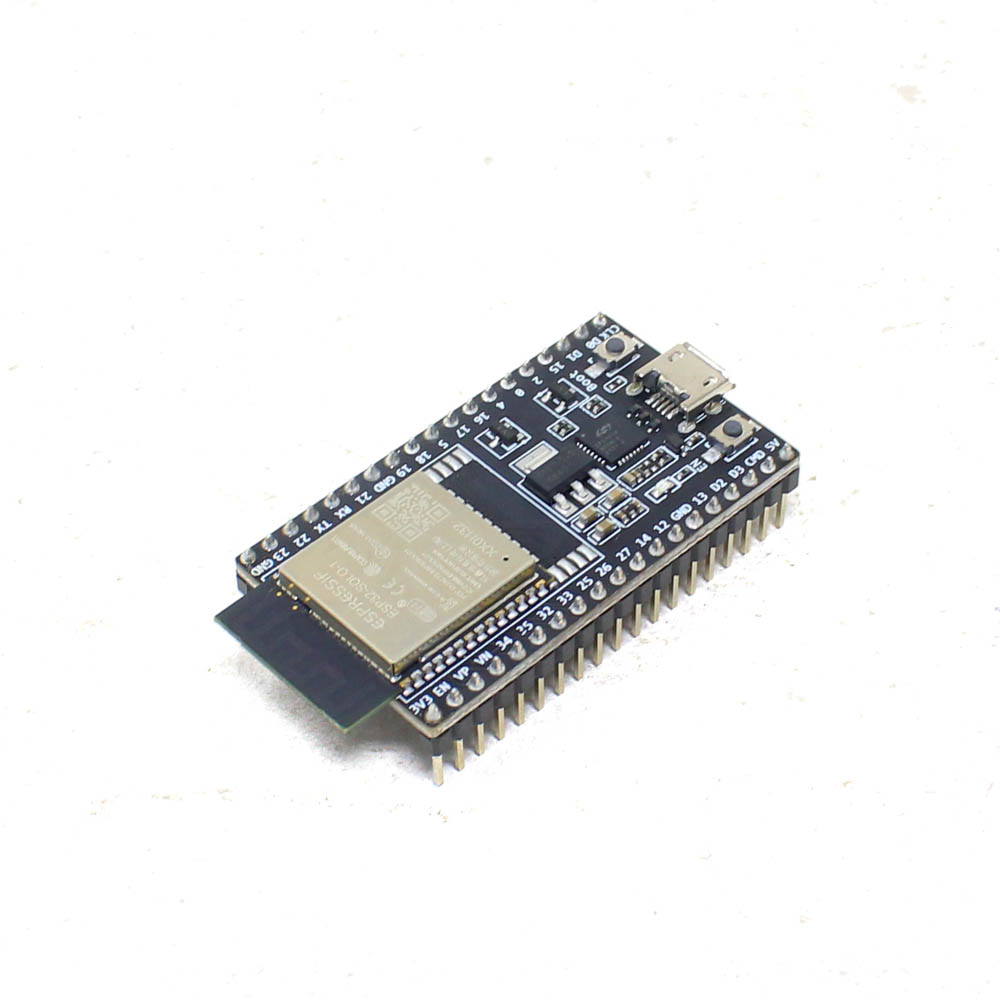

ESP32-SOLO-1 IoT Development Board Module for Arduino

ESP32 is a series of the low-cost, low-power system on a chip microcontroller with integrated Wi-Fi and dual-mode Bluetooth

ESP32-SOLO-1 is a powerful, generic Wi-Fi + Bluetooth + Bluetooth LE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding.

ESP32 can perform as a complete standalone system or as a slave device to a host MCU, reducing communication stack overhead on the main application processor. ESP32 can interface with other systems to provide Wi-Fi and Bluetooth functionality through its SPI / SDIO or I2C / UART interfaces

ESP32-DevKitC is a low-footprint and entry-level. development board that is part of the ESP32 series. This board has a rich peripheral set. The built-in. ESP32 pinout is optimized for hassle-free

Features:

1. ESP32-SOLO-1 can be programmed in different programming environments
2. On board Wi-Fi + Bluetooth + Bluetooth LE MCU connectivity
3. Use in IoT Projects
4. Small and compact Dev module
5. You can connect with a router or your devices
6. Easy to learn & use
7. Rapid Prototyping
8. Flexible and Feature-Rich
9. Breadboard-Friendly

Specifications:

1. Antenna: On board Antenna
2. Product: IoT Development Board
3. Model: ESP32-SOLO-1
4. The CPU clock frequency: 80 MHz to 240 MHz
5. Microprocessor: Tensilica Xtensa LX6 dual core
6. Voltage: 3.6V
7. Current: 500mA
8. ROM: 448 KB ROM
9. SRAM: 520 KB SRAM
10. Integrated crystal 40 MHz crystal
11. QSPI flash/SRAM: 4 × 16 MB
12. On board: Wi-Fi + Bluetooth + Bluetooth LE MCU
13. Operating Temperature:–40 °C ~ +85 °C

Packages Includes:

1 x ESP32-SOLO-1 Development Board Module
