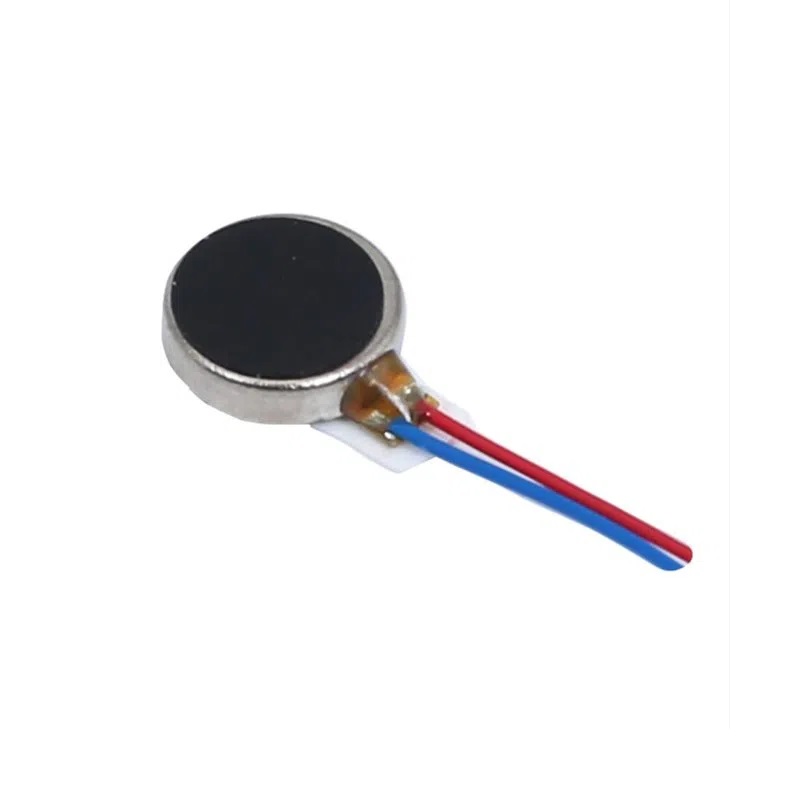

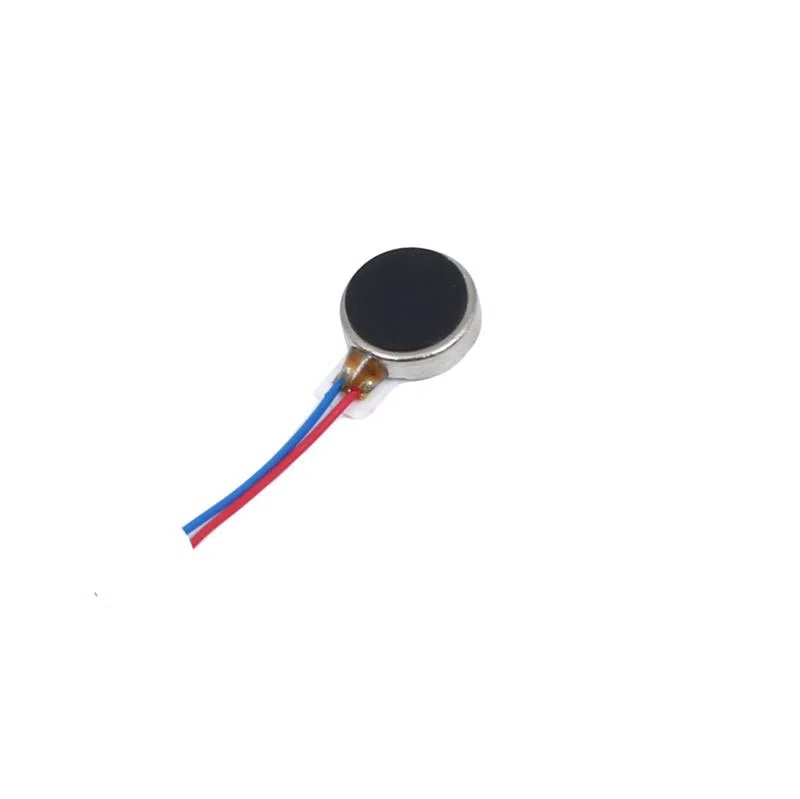

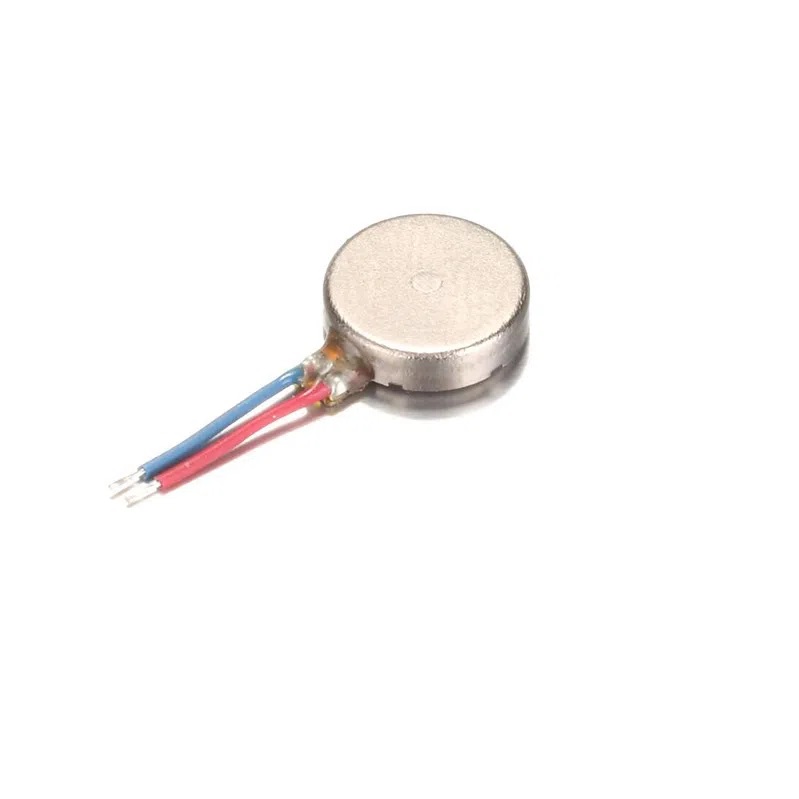

ERM Coin Vibration Motor , 7 mm Dia. ,2 mm thickness

It provides coin vibration motors, also known as shaftless or pancake vibration motors, typically in 7mm to 12mm diameter for coin motor range. The flat vibrating motor is compact and convenient for the end customer. A vibrating disc motor can be integrated into many designs because it can be directly attached to your PCB or the inner wall of the product housing. In all of our coin motors range, leaded wire and spring & pad mountable versions are supported. Like all of our vibration motors. We are happy to quote for variations to the base design such as a customization to the lead wire length and connectors.

Features:

1. High rated speed
2. Size:7*2mm
3. Flat motor
4. Great for DIY projects

Specifications:

1. Operating Voltage: 3-5.3 VDC
2. Starting Voltage: 2.5 VDC
3. Starting Current: 100 MAX
4. Rated Current: 85 mA MAX
5. Rated RPM: 8000
6. Rated Voltage: 3.0 VDC
7. Diameter: 7mm
8. Width: 2mm

Package Includes:

1 x ERM Coin Vibration Motor, 7 mm Dia. ,2 mm thickness
