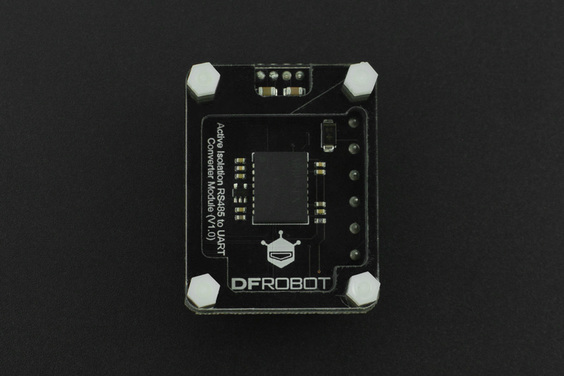

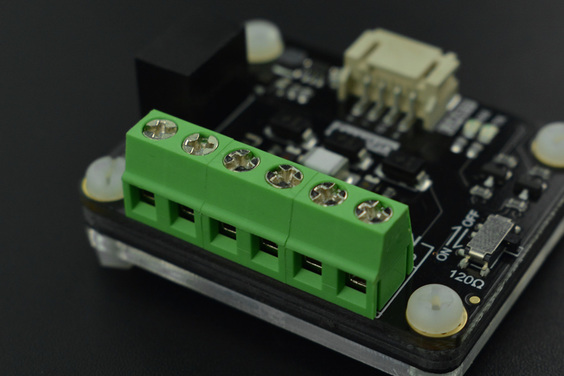

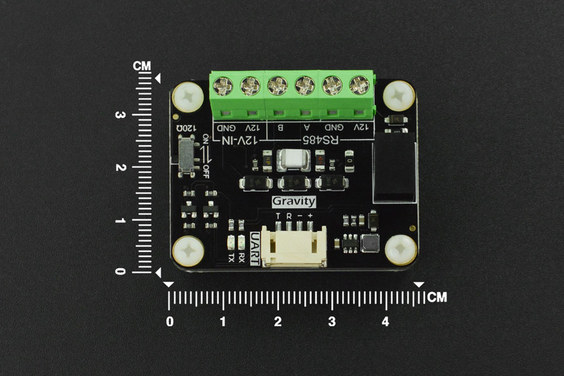

DFRobot Gravity: Active Isolated RS485 to UART Signal Adapter Module

DFrobot offers an advanced level of Products at an affordable cost than any other competitor brand in the market, making them ideal for the one who wants to start some Projects through Different types of products..

After finding Different types of interface modules on market, we at robozar.com have determined that DFrobot is one of the good brands that offer a wide range of modules at an Appropriate price.

This active, isolated RS485 to UART signal transfer module comes with protection circuits such as power isolation and TVS. Compatible with most main controllers, it has the characteristics of fast communication speed, stable and reliable performance, high safety, etc. It can be applied to various industrial sensors, industrial control equipment, or applications that require RS485 signal conversion.

Interfacing RS485 to UART Signal Adapter with Arduino:

Applications:

1. Industrial sensors
2. Industrial control equipment
3. Applications that require RS485 signal conversion

Features:

1. Fast communication speed
2. Stable and reliable performance
3. High safety

Specifications:

1. Power Supply Voltage: 3.3~5V
2. Communication baud rate up to 1M bps
3. Up to 12V-2W power output (output current is about 160mA)
4. Isolation voltage 3000 VDC
5. Bus electrostatic protection capacity is up to 15kV
6. 1/8 unit load, bus load capacity up to 256 nodes
7. Bus fail protection and bus drive short circuit protection
8. Operating temperature range: -40℃ to +105℃

Useful Links:

Please visit the DFrobot wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.

Package Includes:

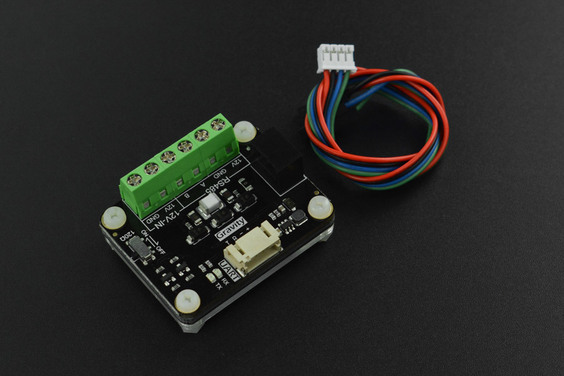

1 x DFRobot Gravity: Active Isolated RS485 to UART Signal Adapter Module
