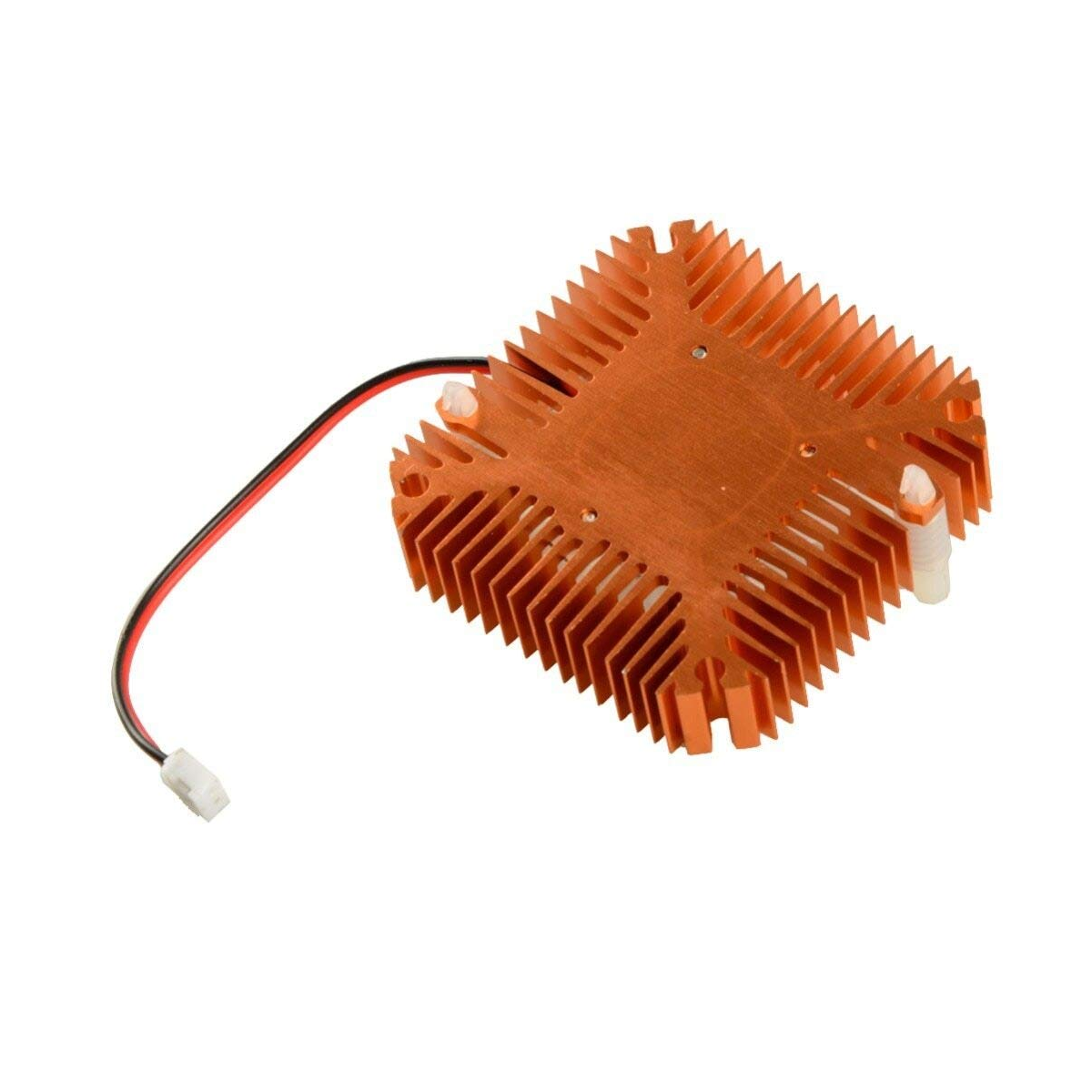

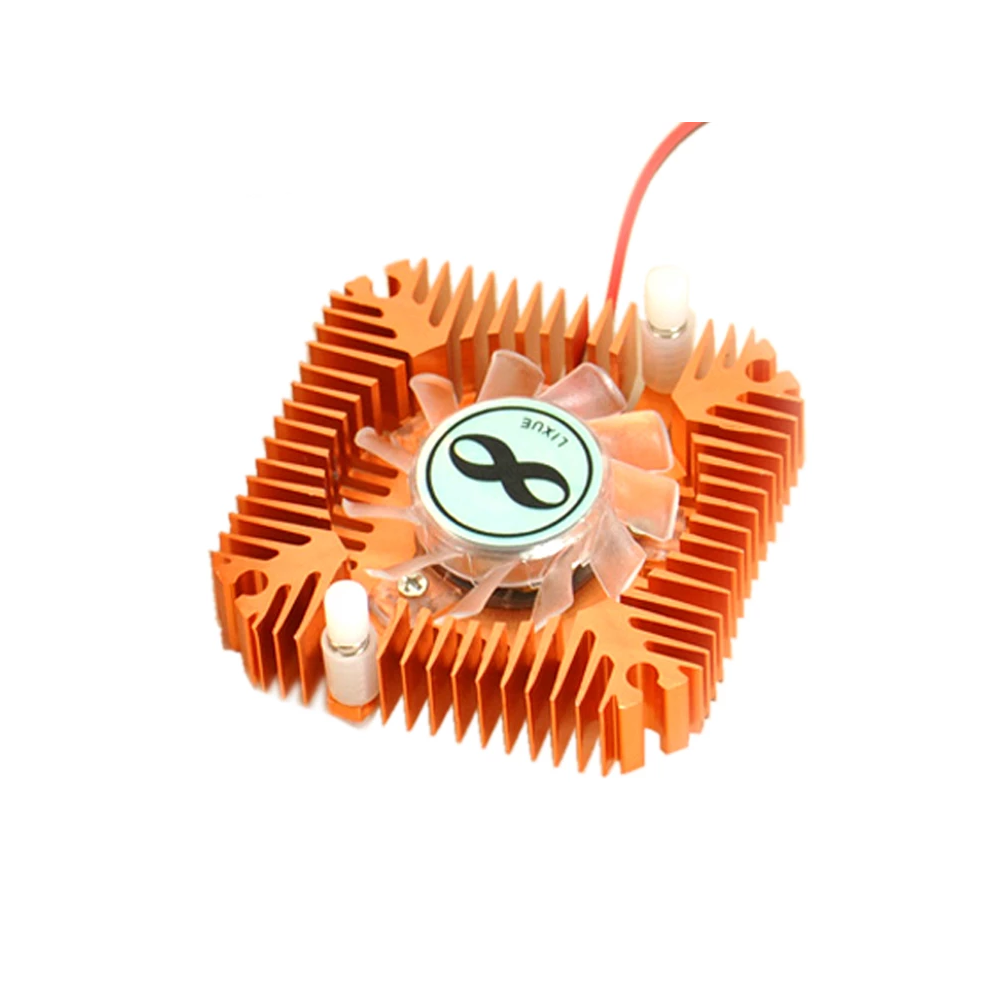

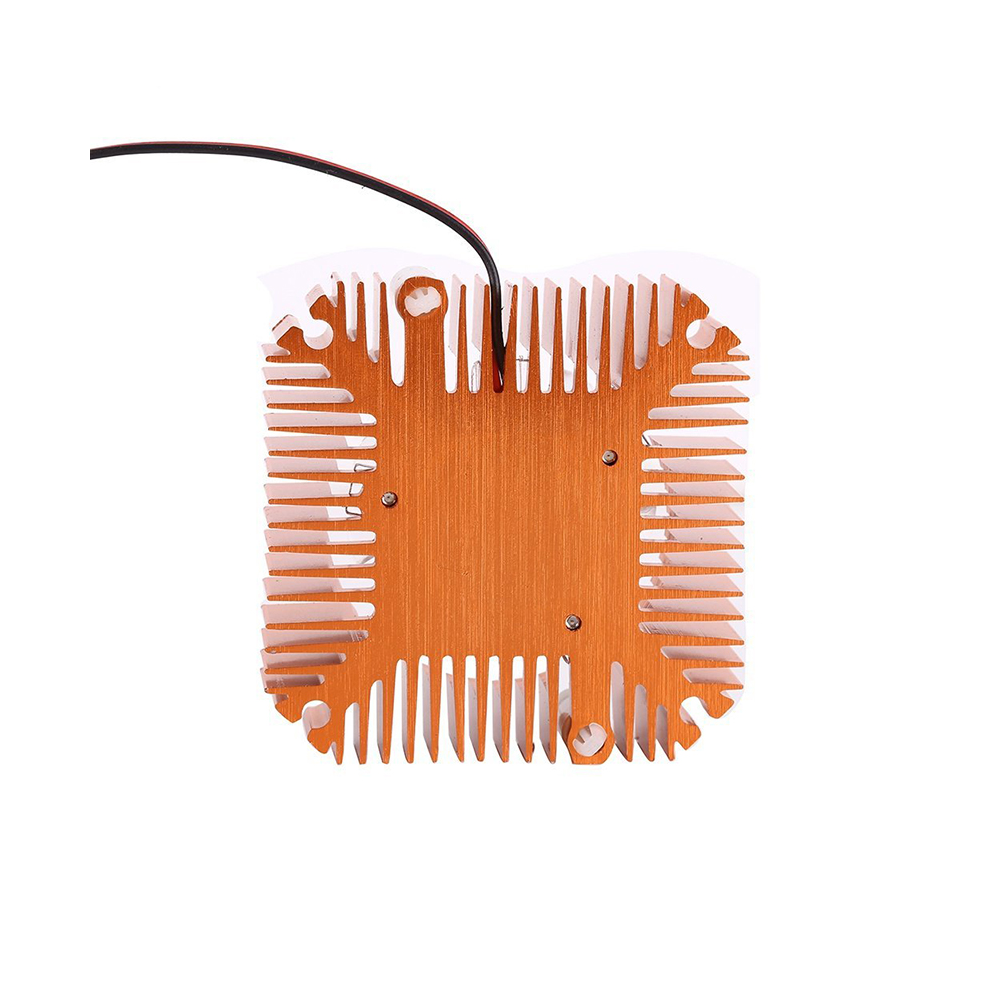

55mm Aluminum Heatsink with Cooling Fan for Graphic Cards

This 55 mm round-edged heat sink is fitted with Cooling FAN perfectly on the Heat Sink for computer or Game console Graphic cards. The Graphic Processing IC heats up the sink a lot when if you use graphics-rich content like games, Graphic editing software, or even 4K video on youtube for a long time, and neither the internal PC chassis fan can be sufficient to reduce the heat not even in an AC environment nor with the casing left open. Especially in the summer season, this issue would be at its peak — causing seizure of the PC and errors on the screen which forced the shutdown of the windows OS.

With this new heatsink Fan fitted right on top of the Heatsink of the Graphic card, you will be able to enjoy graphics-rich content without fear of over-heating and thermal shutdown. To fit the fan on the GPU you need to apply a little Paste so it sticks to the heat sink then press down the harness locks to make the position secure. Remember to apply heat sink component grease between the two heat sinks for better heat dissipation

Specifications and Features:

1. Material: Aluminium Plate
2. Colour: Copper
3. Screw distance: 5.5cm
4. IC Area: 28 x 28 mm
5. Dimension (L x W x H)mm: 55 x 55 x 12
6. Weight: 35g

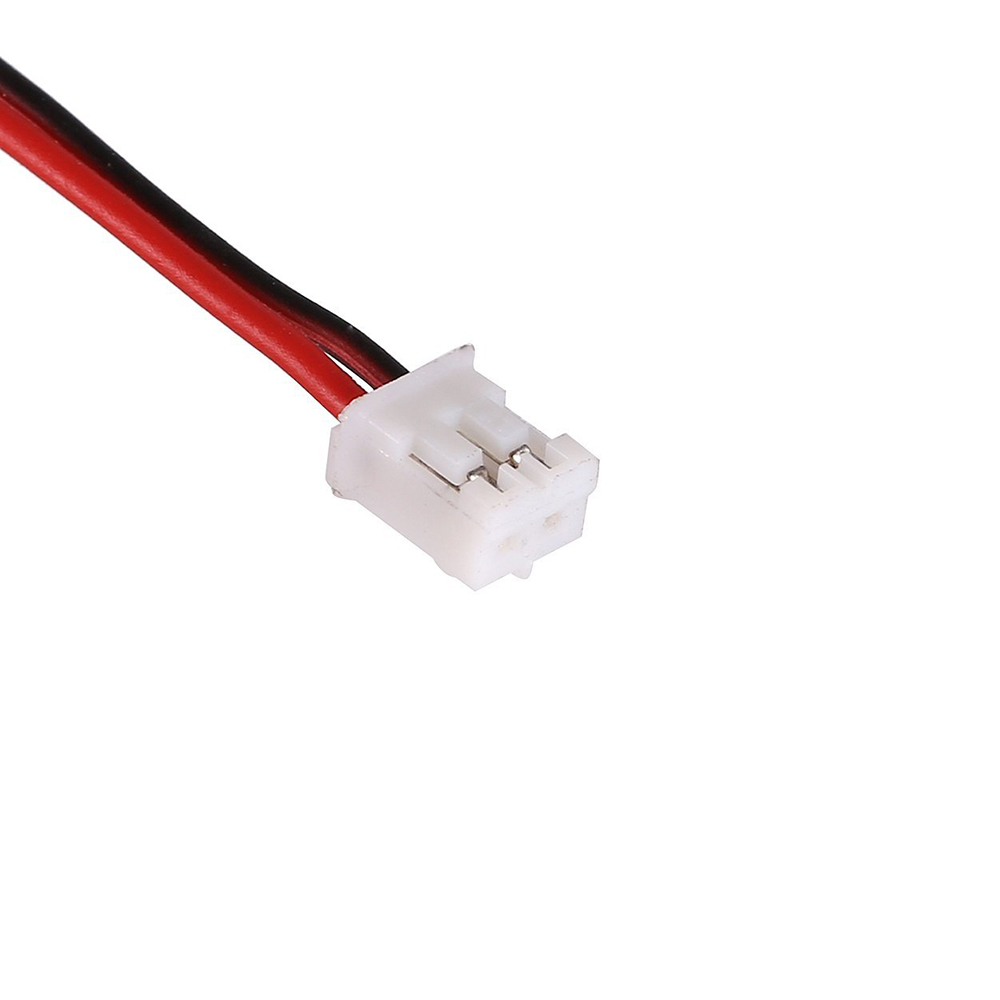

7. Interface: 2pin (2 lines) graphics interface
8. Operating Voltage: 12VDC
9. Current: 0.16 ± 0.18 Amp
10. Speed: 2500RPM ± 10%
11. Air volume: (MAX) 4.72CFM
12. Noise: 11.0dB ± 10%
13. Life: 30,000 hours (25 ℃, 45 ~ 85% relative humidity environment)
14. Wiring length: 13cm
15. Scope: CPU VGA video card

Package Includes

1 x 55mm 2 PIN Graphics Card Cooling Fan Aluminum Heatsink with Cooling Fan
