Description

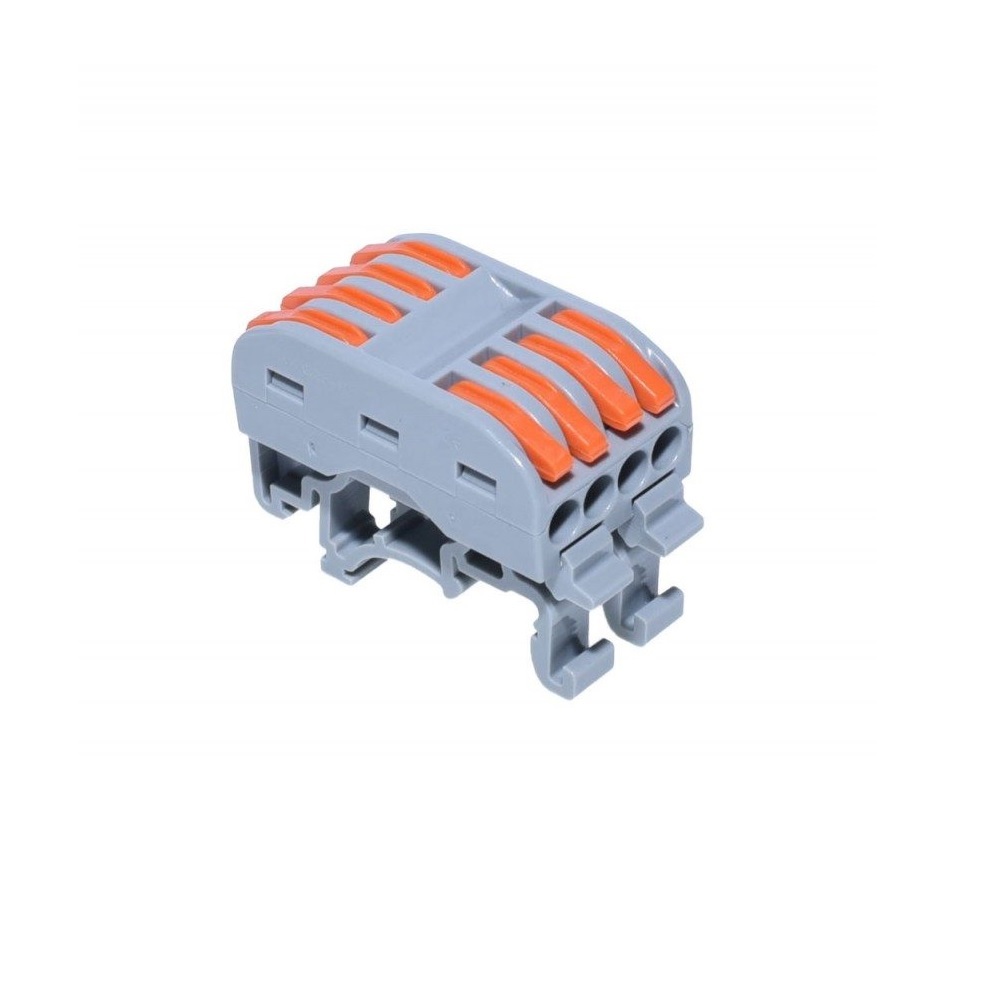

This is a PCT-224D 0.08 ~ 4 mm2  4  Pole both side Wire Connector Terminal Block with Spring Lock Lever for Cable Connection and it has. PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for Single -strand hardwire with 0.08mm to 4 mm² area or soft wire with 0.08mm to 4.0mm² area. This connector can tolerate the rated voltage up to 600V with  32A Electric current peak.

These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.

• PCT-212 is a Two-wire connector
• PCT-213 is a Three-wire connector
• PCT-214 is a Four-wire connector
• PCT-215 is a Five wire connector
• PCT-218 is an Eight-wire connector
• CH-812 is a Two to Two-wire connector
• CH-813 is Three to Three wire connector
• CH-2-4 is a Four to Two-wire connector
• CH-2-6 is a Six to Two-wire connector
• PCT-223-8 Stationary Type Quick Connector
• LT-633(SPL-63) Stationary Type Quick Connector
• LT-933(SPL-93) Stationary, Type Quick Connector
• PCT-223-10 Stationary Type, Quick Connector
• PCT-223-12 Stationary Type, Quick Connector
• PCT-223-3 Stationary Type Quick Connector
• PCT-223-4 Stationary Type Quick Connector
• PCT-224D Guide Rail Type, Quick Connector
• PCT-225D Guide Rail Type Quick Connector
• PCT-225(SPL-5) Quick Connector

Features:

1. Fast and easy to use
2. The right terminal block and connector for every application
3. Minimal space requirements enable high wiring density
4. Clearly organized wiring in control cabinets and junction boxes
5. Maintenance-free installation
6. Permanent, secure connections

Specifications:

1. Rated voltage: 600V
2. Rated current: 32A
3. Number of poles: 4
4. Recording: DIN rail
5. Wire section : 0.08 -4mm2
6. Number of clamps: 8

Package Includes:

1 x PCT-224D Guide Rail Type, Quick Connection Terminal
